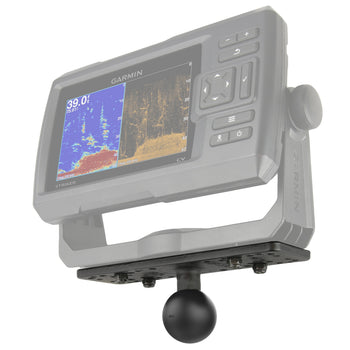

RAM® Universal Marine Electronic Mount with Key Lock Knob
Part#:RAM-111U-DL UPC:793442910043
Ball size C
Arm length Long
2 199 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Complete flat surface, drill-down mounting solution with an overall height of 10.68" and locking knob for theft deterrence
  • Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fish finders depthfinders and more RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fish finders and GPS chartplotters
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
The RAM-111U-DL consists of a 2.5" diameter round base that contains the universal AMPs hole pattern, 9 inch double socket arm, locking knob and 6.25" x 2" rectangle base. The rectangle base contains different combinations of pre-drilled holes which will match up to many electronic devices and mounts, including Marine GPS, CB Radios, Ham Radios, Gimbal Brackets and more.
hardware included

(2) Keys
product dimensions

Overall Height: 10.85"
socket to socket length

8"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

1.021 kg
Additional information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.
