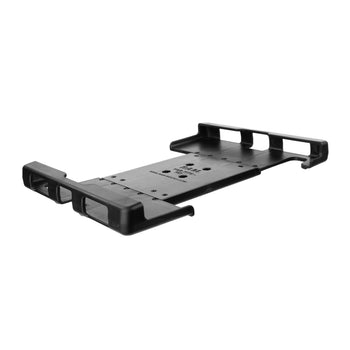

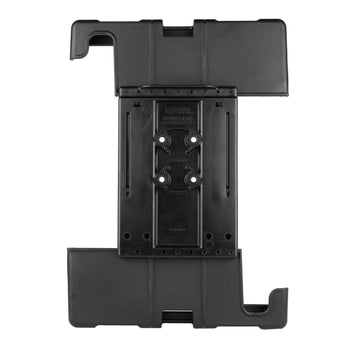

RAM® Tab-Tite™ Holder for Samsung Tab S7+, S8+, S9+, S10+ with Case
Part#:RAM-HOL-TAB36U UPC:793442017483
769 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
RAM® Round Plate with Ball - C Size
Recommended add-on
RAM® Round Plate with Ball - C Size
319 kr
Details
  • Spring-loaded holder secures the Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with a case interchangeable end cups allow you to modify the holder when upgrading devices
  • Compatible with RAM® round ball bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
Related RAM® Products
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® 1/2" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders
RAM® 1/2" Risers for RAM® Tab-Tite™ and...
RAM® 1" Risers for RAM® Tab-Tite™ and RAM® Tab-Lock™ Holders
RAM® 1" Risers for RAM® Tab-Tite™ and R...
RAM® Short Bracket Adapter for Speakers & Microphones
RAM® Short Bracket Adapter for Speakers...
RAM® Standard Bracket Adapter for Speakers & Microphones
RAM® Standard Bracket Adapter for Speak...
RAM® Heavy Duty Long Accessory/Display Bracket
RAM® Heavy Duty Long Accessory/Display ...
The RAM® Tab-Tite™ Holder for Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with Case (RAM-HOL-TAB36U) is a spring-loaded, quick-release device holder. The spring-loaded design makes it easy to insert and remove your tablet while keeping it secure in a variety of applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all buttons, ports, and tablet functions. Included is a set of four nuts and bolts to attach the holder to any RAM® components that contain the universal AMPS hole pattern. This holder is compatible with the Samsung Tab S7+, S7 FE, S8+, S9+, S10+ & S10 FE+ with a case.
hardware included

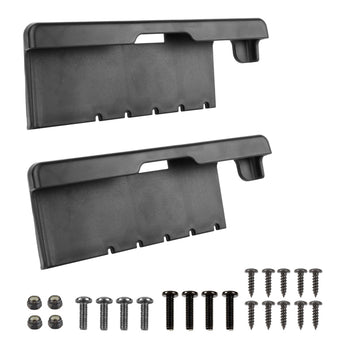

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nyloc Nuts
holder dimensions

Height Range: 11.5" - 14"
Max Width: 8.125"
Max Depth: .79"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
Weight

0.334 kg
Additional information
This holder is intended for larger, heavy duty cases. Thin or light duty cases may sit relatively loosely in the holder. For a better solution to support lighter duty cases, see RAM® X-Grip® option RAM-HOL-UN11U.

If your case has a built-in hand strap or kickstand, offset risers may be required: RAM-HOL-TAB-RISER2U.
