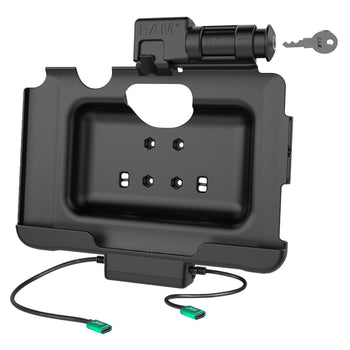

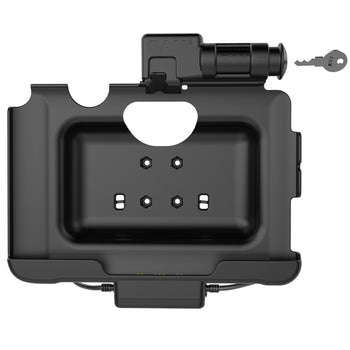

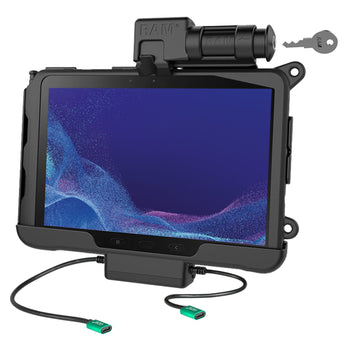

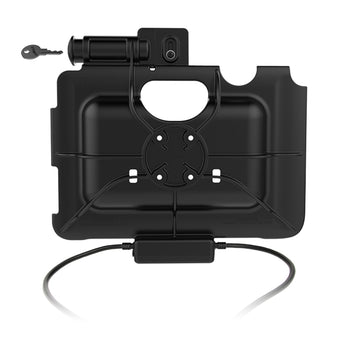

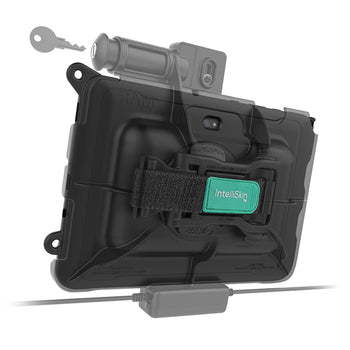

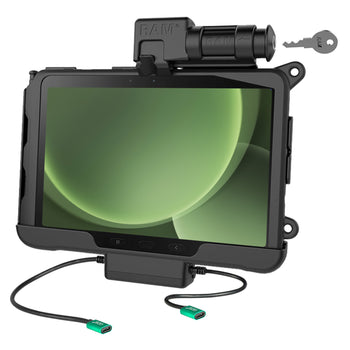

RAM® Locking USB-C Powered Dock + USB-C Data for Tab Active5 Pro & 4 Pro
Part#:RAM-HOL-SAM57CPKL-CU UPC:793442018800
3 409 kr
  • Key locking powered dock supports the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro with factory Samsung case or with RAM® Skin™ powered through integrated pogo pin connector (Non-Power Delivery charger required)
  • Connect one additional peripheral via USB Type-C cable
  • RAM® Mounts Compatible™ with AMPS 4-hole pattern components
  • Made of high-strength composite materials for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
The RAM® Locking USB-C Powered Dock + USB-C Data for Tab Active5 Pro (RAM-HOL-SAM57CPKL-CU) is designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key-lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

215mm
output connector

USB Type-C Female
output cable length

215mm
peripheral output

500mAh
transfer speed

480Mbps
Warranty

3 year warranty
Weight

0.566 kg
Additional Information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.

Consists of

GDS® Cable Clamp for mUSB & USB Type-C Cables RAM-GDS-CAB-CLAMP1U
89 kr

Galaxy Tab Active5 Pro

Galaxy Tab Active4 Pro

Galaxy Tab Active Pro
