RAM® Horizontal Swing Arm with Double Ball Mount
Part#:RAM-109H-2U UPC:793442010934
Ball Icon C SIZE
Arm Icon ARM
3 249 kr

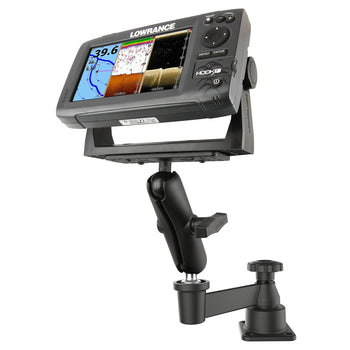

The RAM single swing and socket arm mount includes a 6" straight swing arm mounted on a horizontal surface mounting base. At the end of the mount is a rectangular 6.25" x 2" top base. The bolt pivoting point of the mount allows a 360 degree rotation.
product dimensions

Overall Height: 6.76"
Total Swing Arm Length: 6"
socket to socket length

4.66"
hole pattern

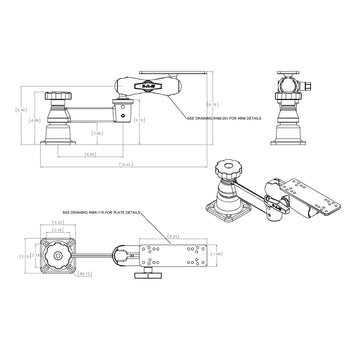

See Drawing
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

1.243 kg
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Består av

RAM® Horizontal 6" Swing Arm Mount with Ball RAM-109H-2BU
Ball Icon C SIZE
Arm Icon ARM
2 279 kr
RAM® Double Socket Arm - C Size Medium RAM-201U
Ball Icon C SIZE
Arm Icon MED ARM
589 kr
RAM® Universal Marine Electronic Ball - C Size RAM-111BU
Ball Icon C SIZE
Arm Icon ARM
459 kr

ECHOMAP Plus 72cv

ECHOMAP Plus 73cv

ECHOMAP Plus 74cv

ECHOMAP Plus 75cv

ECHOMAP Plus 77cv

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

GPSMAP 722

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

HDS Carbon 7

HDS LIVE 7

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters
