RAM® Universal Marine Electronic Mount - C Size Long
Part#:RAM-111U-D UPC:793442001567
Ball Icon C SIZE
Arm Icon LONG ARM
1 549 kr
Incl. VAT
  • Complete flat surface, drill-down mounting solution with an overall height of 10.68"
  • Includes C size long socket arm, 2.5" diameter flat surface drill-down base, and a 6.25" x 2" marine electronic adapter for fish finders depthfinders and more RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Compatible with select Garmin, Lowrance, Raymarine and Humminbird Fish finders and GPS chartplotters
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty
Related RAM® Components
RAM® Pin-Lock™ Security Knob for C Size Socket Arms
RAM® Pin-Lock™ Security Knob for C Size...
RAM® Key Lock Knob with Steel Insert for C Size Socket Arms
RAM® Key Lock Knob with Steel Insert fo...
RAM® Key Lock Knob with Brass Insert for C Size Socket Arms
RAM® Key Lock Knob with Brass Insert fo...

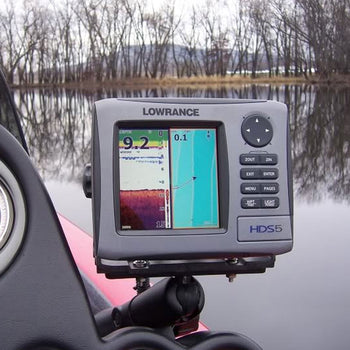

The RAM® Universal Marine Electronic Mount (RAM-111U-D) is a rugged, fully adjustable mounting solution designed for reliable performance on the water. Constructed from powder-coated, marine-grade aluminum, this system includes a 9" long C size double socket arm, a 2.5" diameter round base, and a 6.25" x 2" rectangular adapter plate for secure device mounting. The rectangular adapter features multiple pre-drilled hole patterns, making it compatible with a wide range of marine electronics and mounting configurations, including fish finders, marine GPS units, CB and ham radios, gimbal brackets, and more.
product dimensions

Overall Height: 10.85"
socket to socket length

8"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing
plate size

Rectangular Plate: 6.25" x 2"
Round Plate: 2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Poly Bag
Weight

1.043 kg
Additional Information
The included plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

Consists of

RAM® Round Plate with Ball - C Size RAM-202U
Ball Icon C SIZE
Arm Icon ARM
319 kr
RAM® Double Socket Arm - C Size Long RAM-201U-D
Ball Icon C SIZE
Arm Icon LONG ARM
949 kr
RAM® Universal Marine Electronic Ball - C Size RAM-111BU
Ball Icon C SIZE
Arm Icon ARM
409 kr

ECHOMAP Plus 72cv

ECHOMAP Plus 73cv

ECHOMAP Plus 74cv

ECHOMAP Plus 75cv

ECHOMAP Plus 77cv

ECHOMAP UHD2 5"

ECHOMAP UHD2 7"

GPSMAP 722

GPSMAP 722xs

GPSMAP 723

GPSMAP 723xsv

GPSMAP 742

GPSMAP 742xs

GPSMAP 743

GPSMAP 743xsv

Striker Plus 5cv

Striker Vivid 5cv

Striker Plus 7cv

Striker Plus 7sv

Striker Vivid 5cv

Striker Vivid 7cv

Striker Vivid 7sv

Fishfinders and GPS Chartplotters

Eagle 7

Eagle 9

Elite FS 7

HDS Carbon 7

HDS LIVE 7

Hook Reveal 7 Series

Hook Reveal 9 Series

Fishfinders and GPS Chartplotters

Vision 7"

Fishfinders and GPS Chartplotters

Fishfinders and GPS Chartplotters
