RAM® PTT Speaker & Hardwire Bundle for Sonim XP10
Part#:RAM-138-S-SNM4PL-V7B1U UPC:793442935237 Patented
Ball size C
Arm length Medium
9 349 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Bundle for Sonim XP10 includes powered locking holder, speaker, microphone and mounting bracket for all-in-one communication
  • Powered RAM® EZ-Roll'r™ form-fit dock provides a perfect fit for your device while keeping the device charged

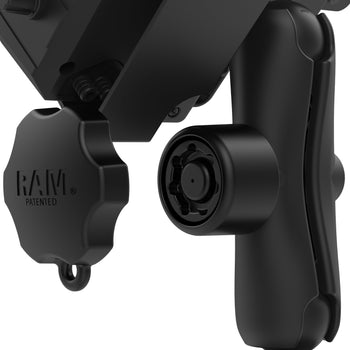

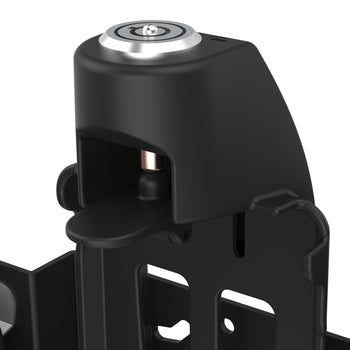

  • Key locking RAM® EZ-Roll'r™ form-fit holder and RAM® Pin-Lock™ for theft deterrence
  • RAM® components backed by lifetime warranty dock and electronics backed by a 3-year warranty

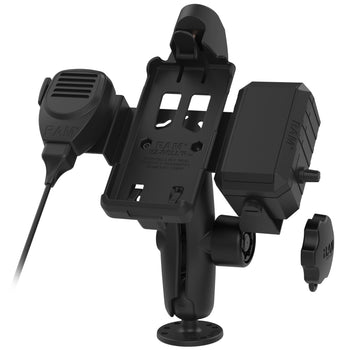

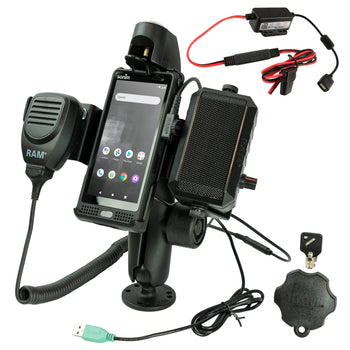

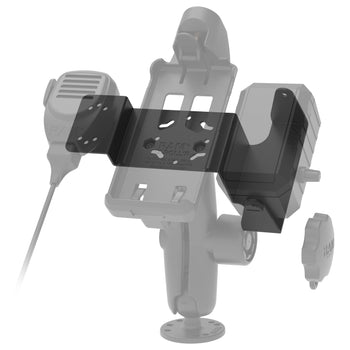

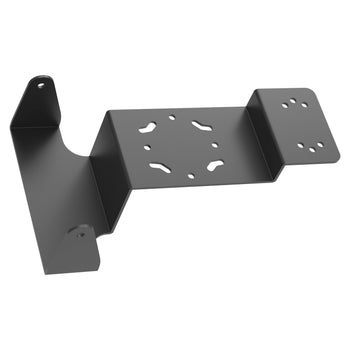

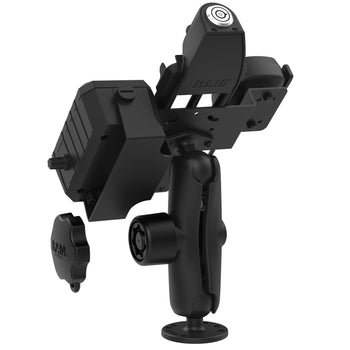

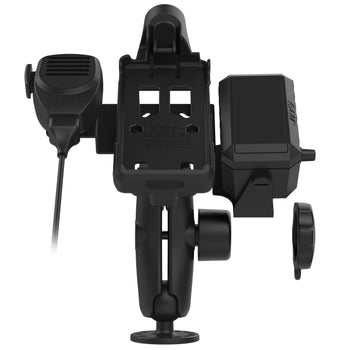

This Sonim XP10 bundle includes the RAM® EZ-Roll'r™ Powered Key Locking Dock for Sonim XP10, double ball mount with RAM® Pin-Lock™ Security Knob, and a mounting bracket containing a speaker and microphone. This bundle secures your Sonim XP10 and keeps your peripherals together and connected as one unit. The powered dock features two integrated pogo pins that provide charging capabilities to the device through a male USB Type-A connector and includes a key lock for extra security and peace of mind. The provided speaker connects to the Sonim unit using an included 10-pin to 3.5 audio adapter cable. Included with the complete bundle is a 10-30V modular vehicle hardwire charger. Optional backing plate not included

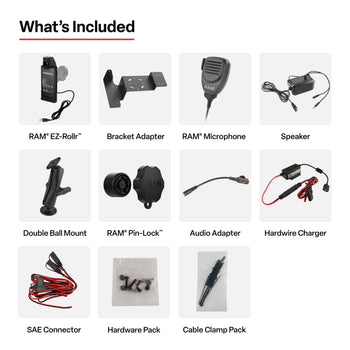

hardware included

Assembly Hardware
(2) Keys for Holder
(1) Key for Locking Knob
(1) 10-pin to 3.5 Audio Adapter Cable
(1) Modular Hardwire Charger
speaker specifications

Independently adjustable volume knob
Max volume level: 100dB
8Ω / 10W rated speaker
socket to socket length

4.66"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
plate size

2.5" Diameter
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
High strength composite
Powder coated steel
packaging type

Poly Bag
input voltage

10-30VDC
output voltage

5-9VDC*
output current

2.5A max
input connector

Charger: Female USB Type A
input cable length

1.2 Meters including 2 Pole Flat Marine Connector
output cable length

.2 Meters
operating temperature

-10°C to +70°C
storage temperature

-40°C to +70°C
regulatory

Over Voltage Protection
Short Circuit Protection
Reverse Polarity Protection
RoHS Compliance
WEEE Compliance
SAE J-1113-5 Load Dump (Transient Voltage)
Moisture Resistant
FCC, CE, UKCA, IC
certifications

E-Mark Certification
RCM Certification
IEC/UL 62368-1
Warranty

3 year warranty
Weight

1.925 kg
Additional information
*5V output is by way of USB 2.0 BC1.2 and DCP mode. 9V output is by way of AFC and QC 2.0.
