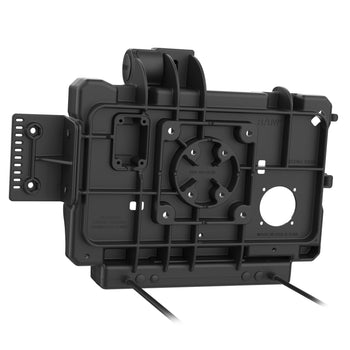

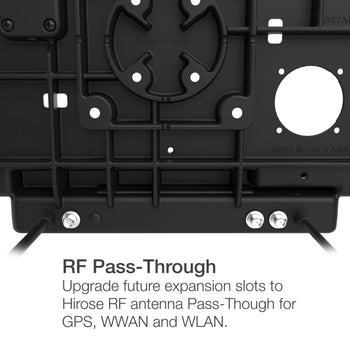

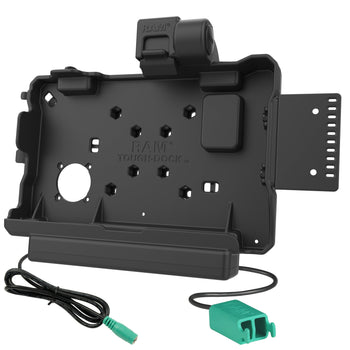

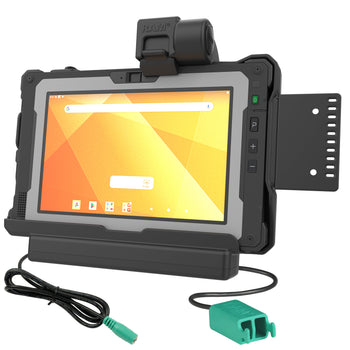

RAM® Power + Dual USB Data Dock for Getac ZX80

Part#:RAM-HOL-GE5PD2U UPC:793442021497

RAM-HOL-GE5PD2U:RAM-HOL-GE5PD2U_2:RAM Power + Dual USB Data Dock for Getac ZX80

RAM-HOL-GE5PD2U:RAM-HOL-GE5PD2U_3:RAM Power + Dual USB Data Dock for Getac ZX80

RAM® Power + Dual USB Data Dock for Getac ZX80

Part#:RAM-HOL-GE5PD2U UPC:793442021497

6 469 kr

Incl. VAT

Options

Form-fit power + dual data sync dock designed specifically for Getac ZX80 rugged tablet
Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base

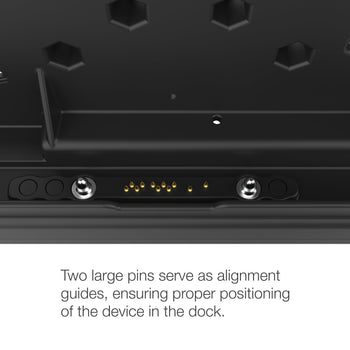

Power delivered through integrated pogo pin technology via 5.5mm DC Connector connect up to 2 input devices via dual USB-A connector
Includes 2-hole side bracket for mounting additional devices such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

Related RAM® Components

GDS® 10-32VDC Input (14VDC Output) Hard...

GDS® 20-60VDC Input (14VDC Output) Hard...

RAM® Vent-Temp™ with Back Dock Connecti...

RAM® NFC Extender with Drill-Down Doubl...

RAM® NFC Extender with Dashboard Mount

Information

Information
Compatibility
Complete Your Solution
Resources

The RAM® Power + Dual USB Data Dock for Getac ZX80 (RAM-HOL-GE5PD2U) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add up to two peripherals with the built-in dual USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the 2-Point Shoulder Strap. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.

hardware included	(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-32 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (1) Cable Clamp Kit (4) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	12-19VDC
output voltage	14VDC
input connector	5.5mm DC Connector
input cable length	1 Meter
output connector	(2) USB 2.0 Type A
output cable length	300mm
peripheral output	900mA (per port)
certifications	FCC, IC, CE, UKCA, WEEE, RoHS
Weight	0.789 kg
Additional Information	This dock is compatible with the Getac 2-point hand strap, but will not support the 4-point hand strap.

Consists of

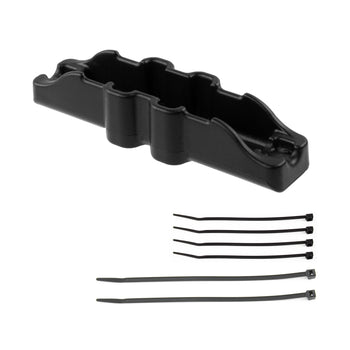

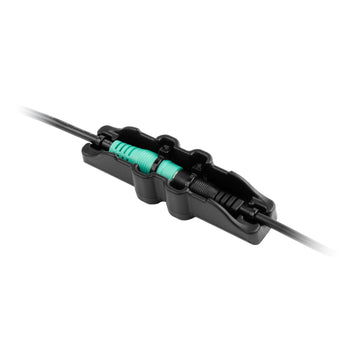

RAM-GDS-CAB-CLAMP4U:RAM-GDS-CAB-CLAMP4U_1:GDS Cable Clamp for 5.5mm DC to DC Barrel Cables

RAM-GDS-CAB-CLAMP4U:RAM-GDS-CAB-CLAMP4U_2:GDS Cable Clamp for 5.5mm DC to DC Barrel Cables

GDS® Cable Clamp for 5.5mm DC to DC Barrel Cables RAM-GDS-CAB-CLAMP4U

149 kr

hardware included	(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-32 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (1) Cable Clamp Kit (4) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	12-19VDC
output voltage	14VDC
input connector	5.5mm DC Connector
input cable length	1 Meter
output connector	(2) USB 2.0 Type A
output cable length	300mm
peripheral output	900mA (per port)
certifications	FCC, IC, CE, UKCA, WEEE, RoHS
Weight	0.789 kg
Additional Information	This dock is compatible with the Getac 2-point hand strap, but will not support the 4-point hand strap.
