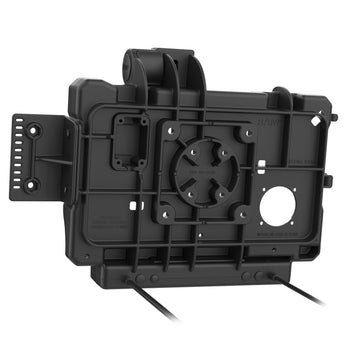

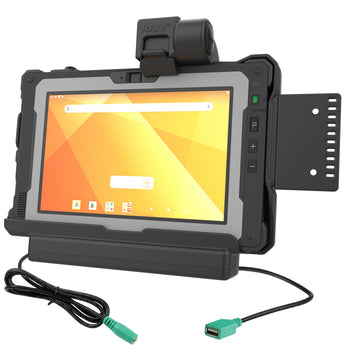

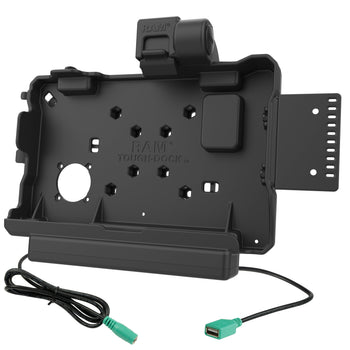

RAM® Power + Data Dock for Getac ZX80

Part#:RAM-HOL-GE5PDU UPC:793442021510

RAM-HOL-GE5PDU:RAM-HOL-GE5PDU_2:RAM Power + Data Dock for Getac ZX80

RAM-HOL-GE5PDU:RAM-HOL-GE5PDU_3:RAM Power + Data Dock for Getac ZX80

RAM® Power + Data Dock for Getac ZX80

Part#:RAM-HOL-GE5PDU UPC:793442021510

6 049 kr

Incl. VAT

Options

Form-fit power + data sync dock designed specifically for Getac ZX80 rugged tablet
Dock features compatibility with RAM® Vent-Temp™, Temp-Right™, RAM® NFC Extender, and D size RAM® VESA pattern base

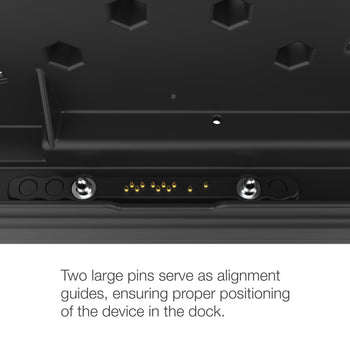

Power delivered through integrated pogo pin technology via 5.5mm DC Connector connect 1 input device via USB-A connector
Includes 2-hole side bracket for mounting additional devices such as a phone compatible with RAM® 2-hole diamond bases and accessory side bracket
Backed by a 3-year warranty

Related RAM® Components

GDS® 10-32VDC Input (14VDC Output) Hard...

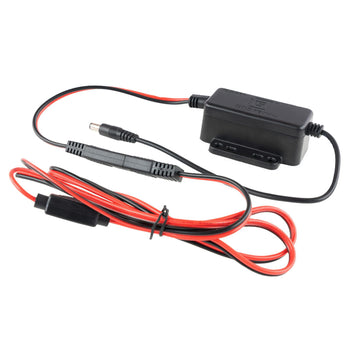

GDS® 20-60VDC Input (14VDC Output) Hard...

RAM® Vent-Temp™ with Back Dock Connecti...

RAM® NFC Extender with Drill-Down Doubl...

RAM® NFC Extender with Dashboard Mount

Information

Information
Compatibility
Complete Your Solution
Resources

The RAM® Power + Data Dock for Getac ZX80 (RAM-HOL-GE5PDU) allows you to secure the device and keep it charged through the pogo pin contacts while docked—power is provided by connecting to the dock's 5.5mm DC power jack. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. Upgrade with any combination of compatible accessories including the RAM® Temp-Right™, Vent-Temp™, RAM® NFC Extender, and D size VESA base. Additional compatibility for Getac accessories include the Standard & High capacity batteries as well as the 2-Point Shoulder Strap. Take the solution a step further by taking advantage of the included 2-hole side bracket, compatible with RAM® 2-hole diamond bases for additional device mounting such as a phone or other handheld device.

hardware included	(1) Side bracket for accessory mounting and strain relief (4) #8-32 x 5/8” Machine Screws (2) #8-32 x 1/2” Machine Screws (6) #8-32 Nylock Nuts (4) #10-32 x 5/8” Machine Screws (4) #10-24 Nylock Nuts (2) Cable Clamp Kits (2) Small Cable Ties
hole pattern	75 x 75mm VESA 4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	12-19VDC
output voltage	14VDC
input connector	5.5mm DC Connector
input cable length	1 Meter
output connector	(1) USB 2.0 Type A
output cable length	240mm
peripheral output	500mA
certifications	FCC, IC, CE, UKCA, WEEE, RoHS
Weight	0.806 kg
Additional Information	This dock is compatible with the Getac 2-point hand strap, but will not support the 4-point hand strap.
