RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

Standard

RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

Part#:RAM-HOL-SAM52CP-1AU UPC:793442022142

RAM-HOL-SAM52CP-1AU:RAM-HOL-SAM52CP-1AU_2:RAM EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

RAM-HOL-SAM52CP-1AU:RAM-HOL-SAM52CP-1AU_3:RAM EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

RAM-HOL-SAM52CP-1AU:RAM-HOL-SAM52CP-1AU_4:RAM EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

RAM® EZ-Roll'r™ Power & Data Dock for Tab Active5 Pro & 4 Pro

Part#:RAM-HOL-SAM52CP-1AU UPC:793442022142

1 779 kr

Incl. VAT

Options

Powered dock provides charging and data transfer capabilities for Samsung GalaxyTab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector for light-duty use and landscape mode only
Powered via USB-C connector (Non-Power Delivery charger required) connect a single input device via USB-A connector
Easily insert and remove the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, or Tab Active Pro with one hand
Compatible with factory skin and RAM® Skin™
Backed by a 3-year warranty

Related RAM® Components

RAM® Vent-Temp™ with Front Dock Connect...

RAM® Rotating Ball Adapter for Phone an...

RAM® Spacer Plate Accessory for Flush M...

RAM® Roto-View™ Adapter Plate

RAM® Tough-Mag™ 88MM Diameter Magnetic ...

Information

Information
Compatibility
Complete Your Solution
Resources

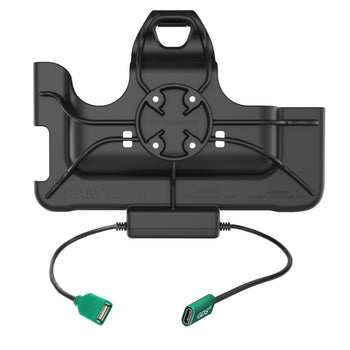

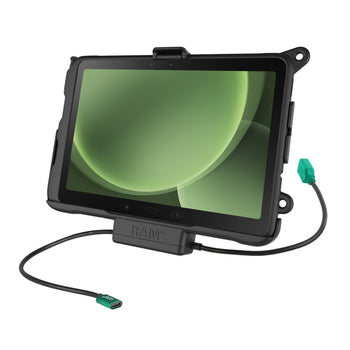

The RAM® EZ-Roll’r™ powered/data cradle for the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro features integrated pogo pins that power the device. These pogo pins are compatible with both the RAM® Skin™ for the Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro and the factory Samsung skin that’s included with the device. In addition, this cradle works perfectly with the RAM® Skin™ while utilizing the GDS® Hand-Stand™ or GDS® shoulder strap. While keeping the Galaxy Tab Active4 Pro and Tab Active Pro secure, the RAM® EZ-Roll’r™ powered cradle also leaves the device’s speakers, mics, and headphone jack exposed and usable. For mounting, pair the cradle with RAM® round ball bases. Includes a Type-A female pigtail connector for data or to connect a USB peripheral such as a scanner.

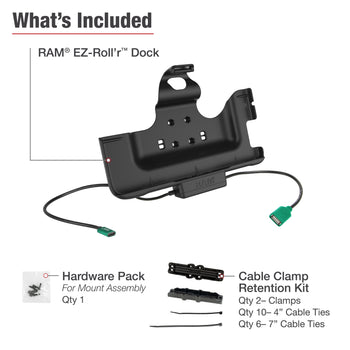

hardware included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (5) Small Cable Ties
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	5.3-5.4VDC
output voltage	5VDC
power output	500mA
input connector	USB Type-C Female
input cable length	250mm
output connector	USB 1.1 Type A
output cable length	250mm
peripheral output	500mA
transfer speed	12Mbps
Warranty	3 year warranty
Weight	0.336 kg
Additional Information	Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly. This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options here. This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
