RAM® Combo-Locking Power + Data Dock for Tab Active5 Pro & 4 Pro
Part#:RAM-HOL-SAM57CPCL-1AU UPC:793442022128
Availability Only a few left
2 969 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support
RAM® Skin™ for Samsung Tab Active5 Pro & 4 Pro
Recommended add-on
RAM® Skin™ for Samsung Tab Active5 Pro & 4 Pro
579 kr
Details
RAM® Screen Protector for Samsung Tab Active5 Pro & 4 Pro
Recommended add-on
RAM® Screen Protector for Samsung Tab Active5 Pro & 4 Pro
379 kr
Details

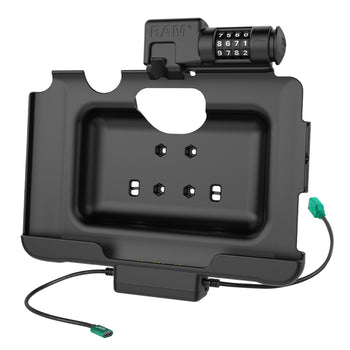

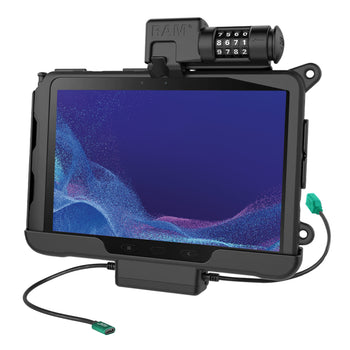

  • Combination locking powered dock supports the Samsung Galaxy Tab Active5 Pro & 4 Pro with factory Samsung case or with RAM® Skin™ powered through integrated pogo pin connector

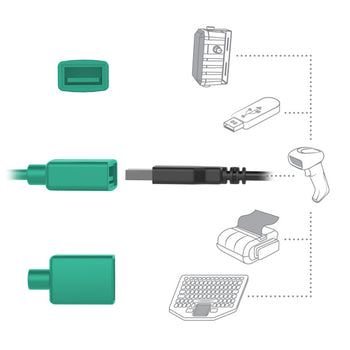

  • Powered via USB-C connector (Non-Power Delivery charger required) connect a single input device via USB-A connector
  • RAM® Mounts Compatible™ with AMPS hole pattern components
  • Made of high-strength composite materials for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Spacer Plate Accessory for Flush Mounting
RAM® Spacer Plate Accessory for Flush M...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern
RAM® Tough-Mag™ 88MM Diameter Magnetic ...

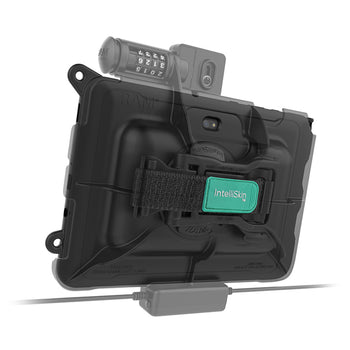

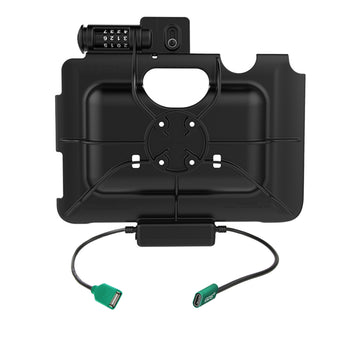

This power cradle for the Samsung Galaxy Tab Active5 Pro & 4 Pro has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a combination lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-A female pigtail, cable clamp, and zip ties.

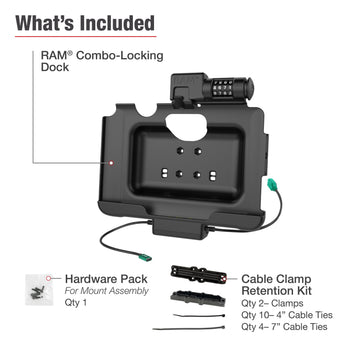

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(7) Small Cable Ties
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

250mm
output connector

USB 1.1 Type A
output cable length

250mm
peripheral output

500mA
transfer speed

12Mbps
Warranty

3 year warranty
Weight

0.51 kg
Additional information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
