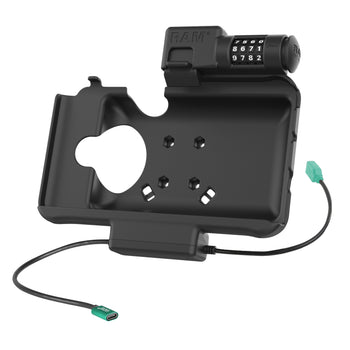

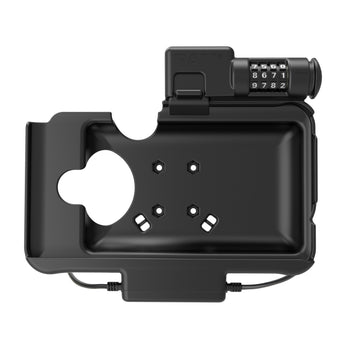

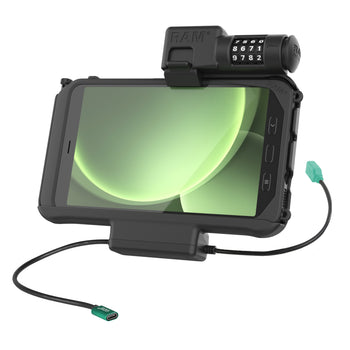

RAM® Combo Locking Power + Data Dock for Samsung Tab Active5 & 3
RAM® Combo Locking Power + Data Dock for Samsung Tab Active5 & 3
3 069 kr
- Combination locking powered cradle provides charging and data transfer capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector

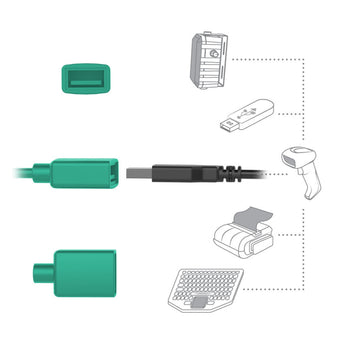

- Power delivered via USB-C connector connect a single input device via USB-A connector

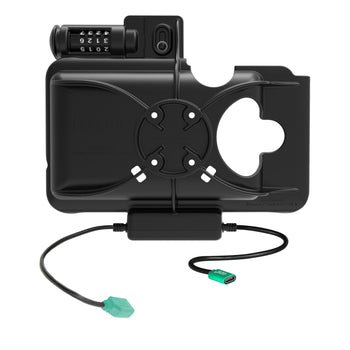

- Contains 4-hole AMPS hole pattern for RAM® ball components
- Access to speakers, mics, headphone jack, and NFC reader remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
- Backed by a 3-year warranty
This combination locking RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port for an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any B or C size RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 or 2 from your vehicle, to your person, to your desk with zero hassle.

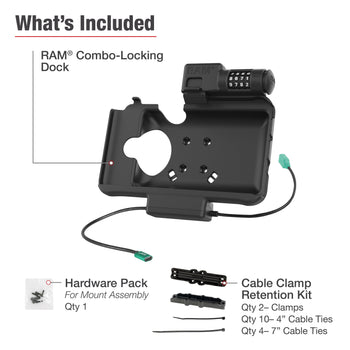

hardware included |
(4) #8-32 x 5/8" Machine Screws |
product dimensions |
Width: 9.25" |
hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
materials |
High strength composite |
packaging type |
Poly Bag |
input voltage |
5.3-5.4VDC |
output voltage |
5VDC |
power output |
500mA |
input connector |
USB Type-C Female |
input cable length |
250mm |
output connector |
USB 1.1 Type A |
output cable length |
250mm |
peripheral output |
500mAh |
transfer speed |
12Mbps |
Warranty |
3 year warranty |
Weight |
0.465 kg |
Additional Information |
This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.
|
Består av
Tab Active5
Tab Active3
Tab Active2
