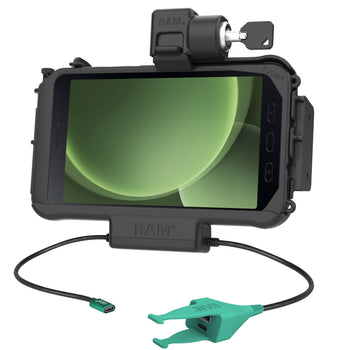

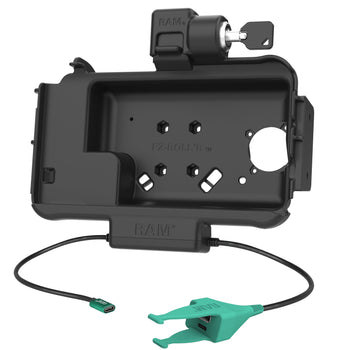

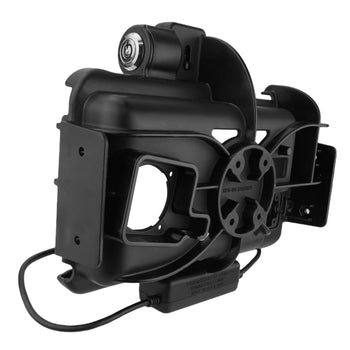

RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & 3
Part#:RAM-HOL-SAM58CPKLN-CAU UPC:793442018794
3 459 kr
  • Key-locking form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 provides charging through an integrated pogo pin connection and USB Type-C cable

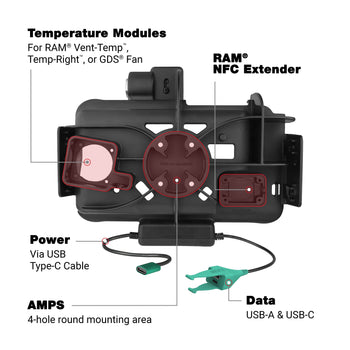

  • Compatible with most RAM® dock accessories including Temperature Control Accessories, RAM® NFC Extender, GDS® Roto-Mag™, and side accessory attachments
  • Power delivered via USB-C connector connect up to 2 input devices via dual USB-A and USB-C connector
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™
  • Backed by a 3-year warranty
The RAM® Locking USB-C Modular Dock + USB-C & USB-A Data for Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB port to support up to two additional peripherals, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is the USB Type-C female pigtail, cable clamp, and zip ties.
hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(1) Cable Clamp
(2) Large Cable Ties
(8) Small Cable Ties

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

input voltage

5.3-5.4VDC

output voltage

5VDC

power output

500mA

input connector

USB Type-C Female

input cable length

215mm

output connector

(1) USB-C Female
(1)USB-A Female

output cable length

215mm

peripheral output

900mAh (per port)

transfer speed

480Mbps

Warranty

3 year warranty

Weight

0.604 kg

Additional Information
This dock is not compatible with the GDS® Hand-Stand™.

Består av

Tab Active3

Tab Active5
