RAM® Thin-Dock™ Locking Power + Single USB Dock for Tab Active5 & 3
RAM® Thin-Dock™ Locking Power + Single USB Dock for Tab Active5 & 3
3 359 kr
Incl. VAT

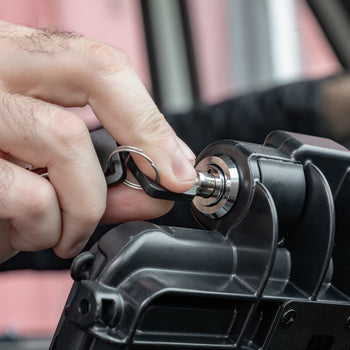

- Key-locking form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

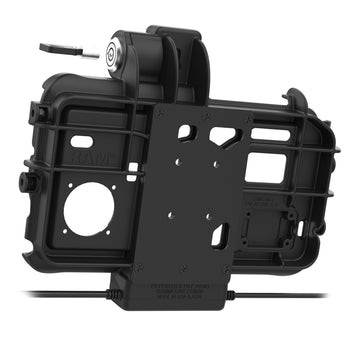

- Slim-profile design at 2.28" depth with metal reinforcement plate

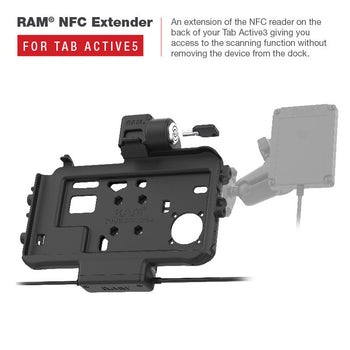

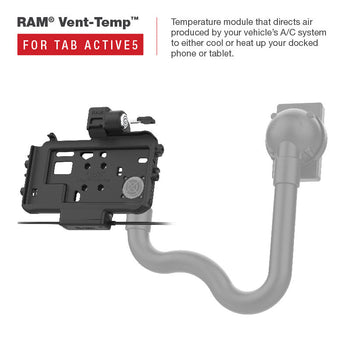

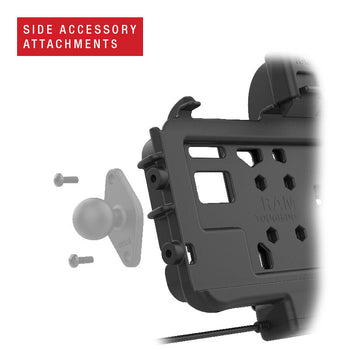

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Powered via USB-C connector (Non-Power Delivery charger required) connect a single input device via USB-A connector
- Backed by a 3-year warranty
Related RAM® Components

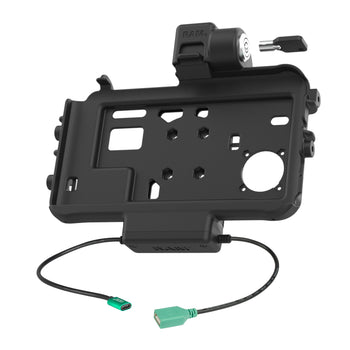

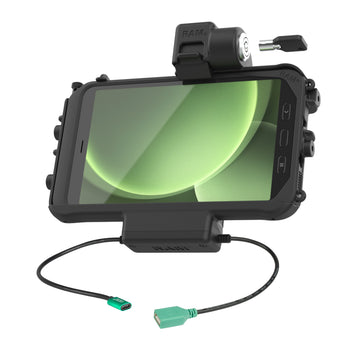

The RAM® Thin-Dock™ Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLT-AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management.
| hardware included |
(2) Keys |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| materials |
High strength composite |
| packaging type |
Poly Bag |
| input voltage |
5.3-5.4VDC |
| output voltage |
5VDC |
| power output |
500mA |
| input connector |
USB Type-C Female |
| input cable length |
250mm |
| output connector |
USB 1.1 Type A |
| output cable length |
250mm |
| peripheral output |
500mA |
| transfer speed |
12Mbps |
| Warranty |
3 year warranty |
| Weight |
0.632 kg |
| Additional Information |
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.
This product will not support the "No Battery Mode" function. This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™. |
Consists of
Tab Active3
Tab Active5
