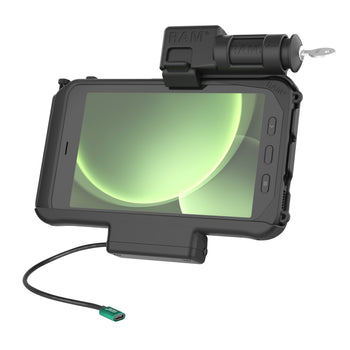

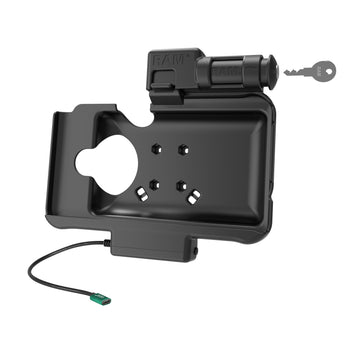

RAM® Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3

Part#:RAM-HOL-SAM58CPKLU UPC:793442021961

RAM-HOL-SAM58CPKLU:RAM-HOL-SAM58CPKLU_2:RAM Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3

RAM® Key Locking USB-C Powered Dock for Samsung Tab Active5 & 3

Part#:RAM-HOL-SAM58CPKLU UPC:793442021961

2 929 kr

Incl. VAT

Options

Key locking powered cradle provides charging capabilities for the Samsung Galaxy Tab Active5, Tab Active3 and 2 through integrated pogo pin connector and USB-C cable (Non-Power Delivery charger required)

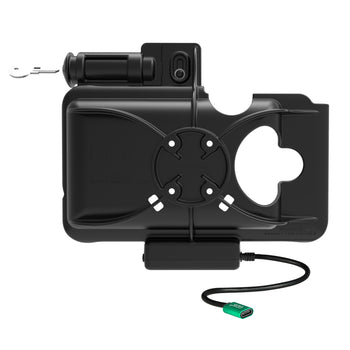

Contains 4-hole AMPS hole pattern for RAM® ball components
Access to speakers, mics, headphone jack, and NFC reader remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
Backed by a 3-year warranty

Related RAM® Components

RAM® Vent-Temp™ with Front Dock Connect...

RAM® Rotating Ball Adapter for Phone an...

RAM® Spacer Plate Accessory for Flush M...

RAM® Roto-View™ Adapter Plate

RAM® Tough-Mag™ 88MM Diameter Magnetic ...

Information

Information
Compatibility
Complete Your Solution
Resources

This powered key locking cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power capabilities are provided to the device through pogo pins, and you can easily rotate the device for use in portrait or landscape mode. For security and theft deterrence, this powered cradle features a key lock that’s compatible with the RAM® Skin™ or factory device skin, as well as GDS® Hand-Stand™ and shoulder strap accessories. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal AMPS hole pattern.

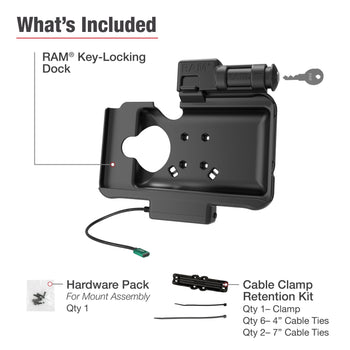

hardware included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) Optional Cable Clamp Housing (2) Large Cable Ties (7) Small Cable Ties
product dimensions	Width: 9.25" Height: 7.75" Depth: 3"
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	5.3-5.4VDC
output voltage	5VDC
power output	500mA
input connector	USB Type-C Female
input cable length	215mm
Warranty	3 year warranty
Weight	0.467 kg
Additional Information	Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly. This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
