RAM® Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

Part#:RAM-HOL-SAM58CPT-1AU UPC:793442021954

RAM-HOL-SAM58CPT-1AU:RAM-HOL-SAM58CPT-1AU_2:RAM Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

RAM-HOL-SAM58CPT-1AU:RAM-HOL-SAM58CPT-1AU_3:RAM Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

RAM-HOL-SAM58CPT-1AU:RAM-HOL-SAM58CPT-1AU_4:RAM Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

RAM-HOL-SAM58CPT-1AU:RAM-HOL-SAM58CPT-1AU_5:RAM Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

RAM-HOL-SAM58CPT-1AU:RAM-HOL-SAM58CPT-1AU_6:RAM Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

RAM® Thin-Dock™ Power + Single USB Dock for Tab Active5 & 3

Part#:RAM-HOL-SAM58CPT-1AU UPC:793442021954

2 589 kr

Incl. VAT

Options

Form-fit power + data sync dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™
Slim-profile design at 2.28" depth with metal reinforcement plate

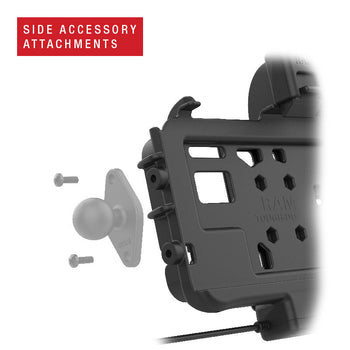

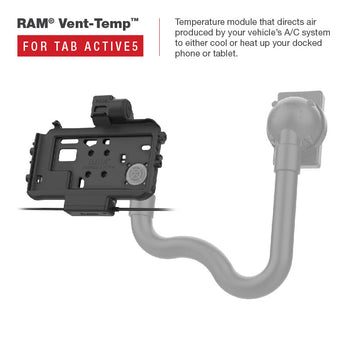

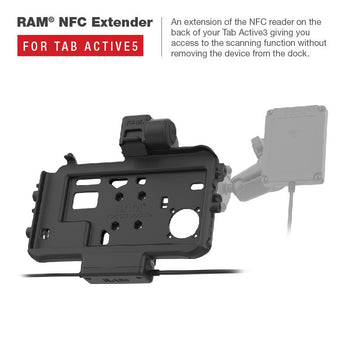

Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
Powered via USB-C connector (Non-Power Delivery charger required) connect a single input device via USB-A connector
Backed by a 3-year warranty

Related RAM® Components

RAM® Rotating Ball Adapter for Phone an...

RAM® Spacer Plate Accessory for Flush M...

RAM® Roto-View™ Adapter Plate

RAM® Tough-Mag™ 88MM Diameter Magnetic ...

RAM® Bond-A-Base™ Black Adhesive Base

RAM® Low-Profile Cage Guard Mount with ...

Information

Information
Compatibility
Complete Your Solution
Resources

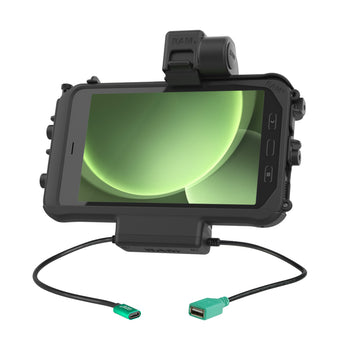

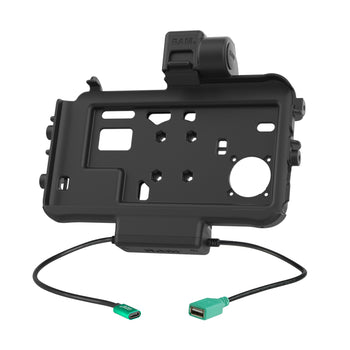

The RAM® Thin-Dock™ Power + Data Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPT-1AU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. Add a peripheral with the built-in USB Type-A cord and connect a keyboard, barcode scanner, printer, and more. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern. Also included is a cable clamp and zip ties for cable management.

hardware included	(4) #8-32 x 5/8" Machine Screws (4) #8-32 Nylock Nuts (1) GDS® Genuine USB 2.0 Straight Cable (2) Optional Cable Clamp Housings (4) Large Cable Ties (10) Small Cable Ties
hole pattern	4-Hole AMPS: 1.181" x 1.496"
materials	High strength composite
packaging type	Poly Bag
input voltage	5.3-5.4VDC
output voltage	5VDC
power output	500mA
input connector	USB Type-C Female
input cable length	250mm
output connector	USB 1.1 Type A
output cable length	250mm
peripheral output	500mA
transfer speed	12Mbps
Warranty	3 year warranty
Weight	0.544 kg
Additional Information	Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly. This product will not support the "No Battery Mode" function. This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™.
