RAM® Thin-Dock™ Powered Dock for Tab Active5 & 3
RAM® Thin-Dock™ Powered Dock for Tab Active5 & 3
2 399 kr
Fast shipping from Halmstad, Sweden
Official RAM® Mounts distributor
Expert support on mounting solutions
- Form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 wrapped in a Samsung OEM protective case or RAM® Skin™

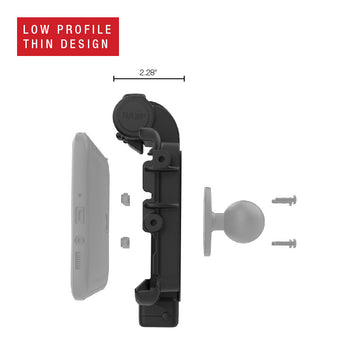

- Slim-profile design at 2.28" depth with metal reinforcement plate

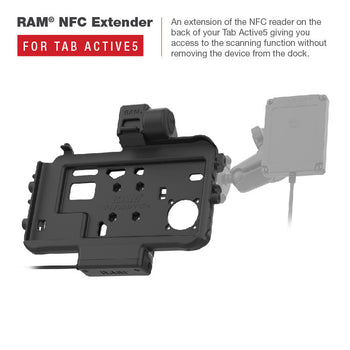

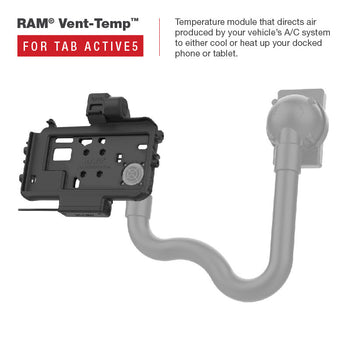

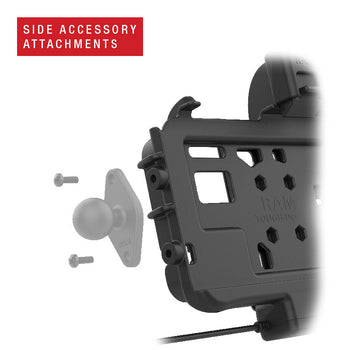

- Compatible with most RAM® dock accessories including RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments
- Provides charging connectivity through integrated pogo pin technology and USB-C cable (Non-Power Delivery charger required)
- Backed by a 3-year warranty

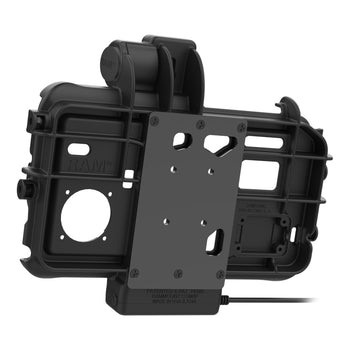

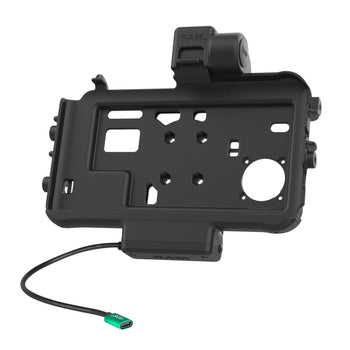

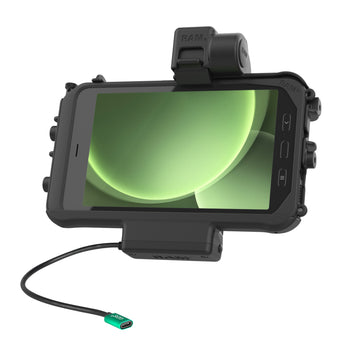

The RAM® Thin-Dock™ Powered Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPTU) offers a slim profile at 2.28" in depth with a metal reinforcement plate for a smaller footprint. Power capabilities from the dock are provided to the device through pogo pin technology and integrated USB-C cable, taking advantage of the Tab Active5 & 3's pogo pad docking contacts—simply dock the device for a seamless charging experience. This modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: RAM® Vent-Temp™, RAM® NFC Extender, and side accessory attachments such as a phone mount or barcode scanner. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.
| hardware included |
(4) #8-32 x 5/8" Machine Screws |
| hole pattern |
4-Hole AMPS: 1.181" x 1.496" |
| materials |
High strength composite |
| packaging type |
Poly Bag |
| input voltage |
5.3-5.4VDC |
| output voltage |
5VDC |
| power output |
500mA |
| input connector |
USB Type-C Female |
| input cable length |
215mm |
| Warranty |
3 year warranty |
| Weight |
0.444 kg |
| Additional Information |
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.
This product will not support the "No Battery Mode" function. This dock is not compatible with the GDS® Hand-Stand™, RAM® Temp-Right™, or GDS® Roto-Mag™. |
Tab Active3
Tab Active5
