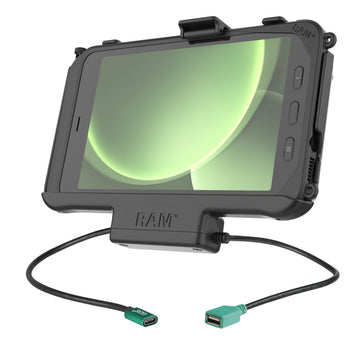

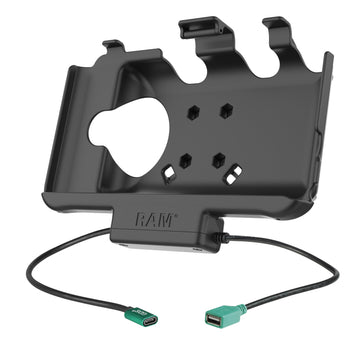

RAM® EZ-Roll'r™ Power + Data Dock Samsung Tab Active5 & 3
Part#:RAM-HOL-SAM60CP-1AU UPC:793442021893
1 869 kr

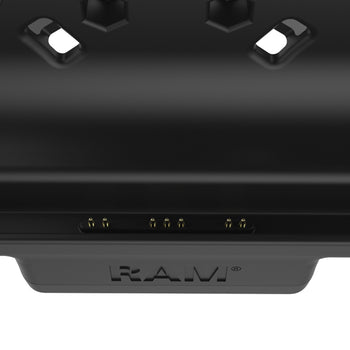

  • RAM® EZ-Roll'r™ form-fit powered dock for the Samsung Galaxy Tab Active5, Tab Active3 and 2 provides charging and connects one additional USB peripheral through an integrated pogo pin connector
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™ built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Powered via USB-C connector (Non-Power Delivery charger required) connect a single input device via USB-A connector
  • Access to speakers, mics, and headphone jack remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty

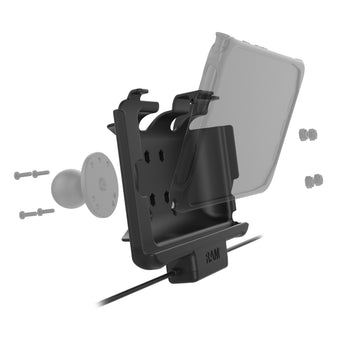

This RAM® EZ-Roll’r™ power cradle for the Samsung Tab Active5, Tab Active3 and 2 has been designed to meet the demands of field workers in a variety of applications including transportation, field sales, logistics, manufacturing, and much more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB-A port to support an additional peripheral making this the ideal, compact mounting solution for your mobile workstation. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the cradle to any RAM® components containing the universal 4-hole AMPS pattern. This cradle also contains space in the back allowing for a GDS® Hand-Stand™ attachment so you can easily take your Tab Active5, 3 & 2 from your vehicle, to your person, to your desk with zero hassle.

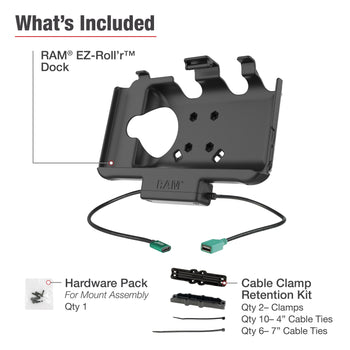

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nylock Nuts
(2) Optional Cable Clamp Housings
(6) Large Cable Ties
(10) Small Cable Ties
product dimensions

Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

250mm
output connector

USB 1.1 Type A
output cable length

250mm
peripheral output

500mAh
transfer speed

12Mbps
Warranty

3 year warranty
Weight

0.32 kg
Additional Information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function of the Tab Active3. To support "No Battery Mode", see RAM® Tough-Case™ options here.

Consists of

GDS® Cable Clamp for mUSB & USB Type-C Cables RAM-GDS-CAB-CLAMP1U
89 kr
GDS® Cable Clamp for USB Type-A Cables RAM-GDS-CAB-CLAMP2U
89 kr

Tab Active5

Tab Active3

Tab Active2
