RAM® Tilt-N-Turn™ 90-Degree Bracket with Single Swing Arm
Part#:RAM-VB-TNT90-1 UPC:793442914720
1 829 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

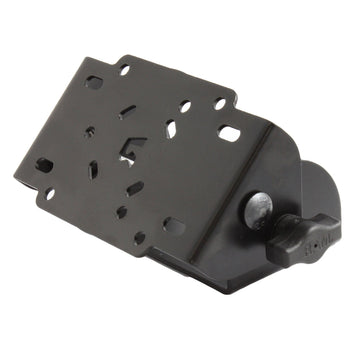

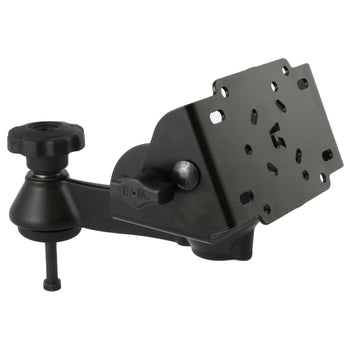

The RAM-VB-TNT90-1, Tilt-N-Turn™ 90 degree motion attachment swing arm, consists of a steel plate on a single swing arm that has a tilt range of 90 degrees forward and back from the vertical position. The small range of tilt is designed to angle a connected RAM laptop cradle forward giving you a comfortable typing and viewing angle. The Tilt-N-Turn™ plate can spin in 360 degrees around on the swing arm end, and with a twist of the side lock knob, the attachment will tilt forward and back. Knowing that this product has countless applications, numerous hole patterns are built right in making the Tilt-N-Turn™ exceptionally versatile. The AMPS, 90 degree AMPS, 75 x 75MM VESA, 2” x 4”, and RAM’s own three hole at 120 degrees take the guess work out of whether this product will work for you. Whether you have and existing RAM system and want to integrate this product, or simply need the best mounting system available, consider RAM and yet another ergonomic product this time with the Tilt-and-Turn™ feature.
hardware included

Assembly Hardware
(1) 3/8"-16 x 1.5" Carriage Bolt
(1) 3/8"-18 Lock Nut
(1) 2" Rubber Washer
(2) 5/16" Flat Washer
materials

Powder coated steel
Marine grade-aluminum
packaging type

Poly Bag
Weight

1.47 kg
