RAM® Composite Double Ball Mount with Hardware for Garmin Striker + Mo

RAM® Composite Double Ball Mount with Hardware for Garmin Striker + More

Part#:RAP-B-101U-G4 UPC:793442940293

RAM® Composite Double Ball Mount with Hardware for Garmin Striker + More

Part#:RAP-B-101U-G4 UPC:793442940293

Ball Size

B Size C Size

Size Guide

Size	Ball Diameter	Max Load	Best For
A	0.56″ (14.3 mm)	0.5 lb (0.2 kg)	Action cameras and other ultra-light devices
B	1″ (25.4 mm)	2 lbs (0.9 kg)	Phones, GPS units, and small tablets — the most common size
C	1.5″ (38.1 mm)	4 lbs (1.8 kg)	Large tablets, fish finders, and rougher rides
D	2.25″ (57.2 mm)	6 lbs (2.7 kg)	Rugged tablets, laptops, and heavy equipment
E	3.38″ (85.9 mm)	15 lbs (6.8 kg)	Large displays and demanding aviation or industrial use

*Approximate capacity for a standard ball with a mid-length arm. Shorter arms and steel-reinforced posts increase real-world capacity.

Reading part numbers

The letter after RAM tells you the ball size: RAM-B-166 uses a 1″ B ball, while RAM-D-201 uses a 2.25″ D ball. C size parts are the exception and carry no letter, so RAM-201U is a C size arm.

Arm length Medium

Options

559 kr

Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

Recommended add-on

RAM® Backing Plate Adapter

239 kr

Details

Related RAM® Products

RAM® Pin-Lock™ Security Knob for B Size...

RAM® Key Lock Knob with Steel Insert fo...

RAM® Key Lock Knob with Brass Insert fo...

Information

Information
Resources

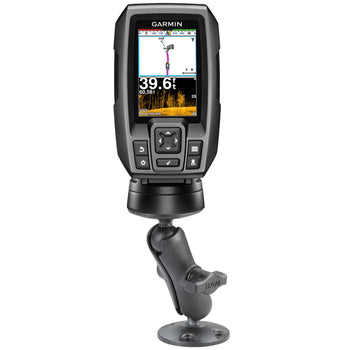

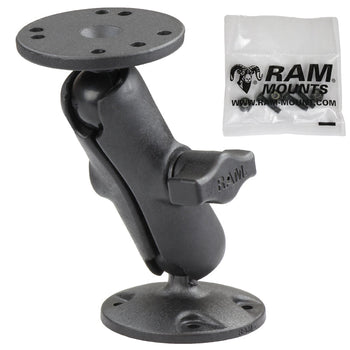

The RAP-B-101U-G4 consists of a 2.5" diameter round base with the universal AMPS hole pattern, double socket arm and round adapter base that attaches directly to the bottom of the Garmin echo™ and Striker™ 4 Series. Designed into the mount is a 1" diameter patented rubber ball and socket system with adjustment points at both socket ends of the arm this with RAM's rubber ball and socket technology allows for almost infinite adjustment and perfect viewing angles. Included is hardware that is used to attach the Garmin echo™ to the RAM Mount.

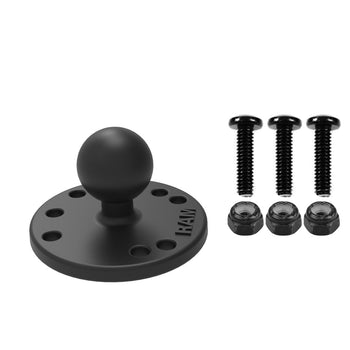

hardware included	(3) #8-32 x 5/8" Machine Screws (3) #8-32 Nyloc Nuts
product dimensions	Overall Height: 5.4"
socket to socket length	3"
hole pattern	4-Hole AMPS: 1.181" x 1.496" 3-Hole 120-Degree: 1.812" Diameter
ball size	B Size (1")
weight capacity	Standard Use: 2 lbs Heavy-Duty Use: 1 lb
materials	Marine-grade aluminum High strength composite
packaging type	Poly Bag
Weight	0.204 kg
