RAM® Universal Wheelchair Ball Base - C Size
Part#:RAM-238-WCT UPC:793442007224
Ball Icon C SIZE
Arm Icon ARM
559 kr
Incl. VAT

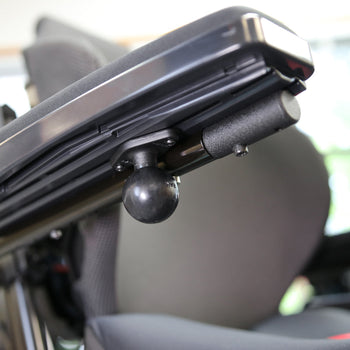

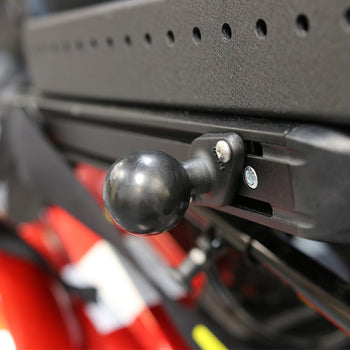

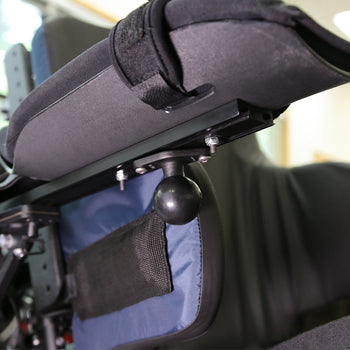

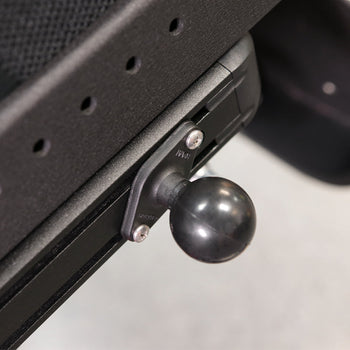

This RAM® ball base features a universal hardware pack that accommodates the arm and seat tracks on most major wheelchair brands including Invacare, Permobil, and Quickie, as well as any other universal mounting point. Pair with a variety of compatible RAM® arms and extensions to build a custom mount to meet your specific needs.
hardware included

(2) #10-32 T-Nuts
(2) #10-32 Flat Weld Nuts
(2) #10-32 x 1/2" Machine Screws
(2) M4 x 12mm Machine Screws
(2)M4 x 20mm Machine Screws
(2) M4 Stainless Steel Washers
(2) M4 Nylock Nuts
t bolt dimensions

Large: .48" x .95"
Small: .375" x .593"
hole pattern

2-Hole AMPS 1.912"
ball size

C Size (1.5")
weight capacity

Standard Use: 4 lbs
Heavy-Duty Use: 3 lbs
materials

Marine-grade aluminum
packaging type

Retail Bag
Weight

0.136 kg

Consists of

RAM® Diamond Ball Base - C Size RAM-238U
Ball Icon C SIZE
Arm Icon ARM
279 kr
