GDS® Tough-Dock™ + USB-C Data for Tab Active5 Pro & 4 Pro
Part#:RAM-GDS-DOCK-SAM54NC-CU UPC:793442019845
3 449 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

IntelliSkin® Next Gen for Samsung Tab Active5 Pro & 4 Pro
Recommended add-on
IntelliSkin® Next Gen for Samsung Tab Active5 Pro & 4 Pro
1 269 kr
Details
RAM® Screen Protector for Samsung Tab Active5 Pro & 4 Pro
Recommended add-on
RAM® Screen Protector for Samsung Tab Active5 Pro & 4 Pro
379 kr
Details
  • Form-fit vehicle dock featuring GDS® Technology™ for the Samsung Tab Active5 Pro, Tab Active4 Pro, & Tab Active Pro

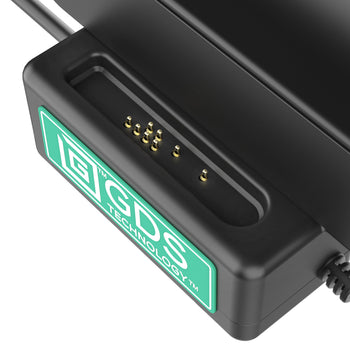

  • Enables high speed charging capabilities for IntelliSkin®-wrapped devices via 8-pin connection

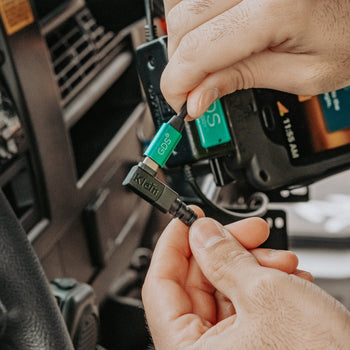

  • Supports one peripheral device via integrated USB Type-C female connector includes push-to-talk capabilities when paired with RAM® RSM or 3rd party microphone
  • Part of the GDS® Ecosystem™ to keep devices protected, connected, and charged in nearly any application
  • Backed by a 3-year warranty

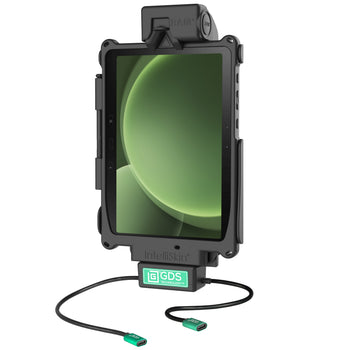

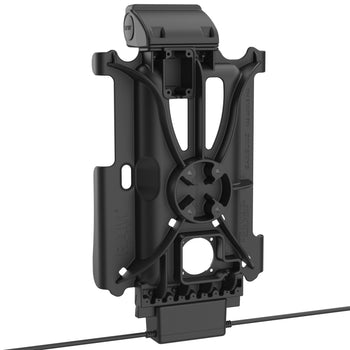

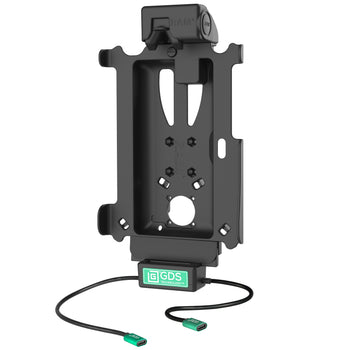

The GDS® Tough-Dock™ + USB-C Data for Tab Active5 Pro & 4 Pro (RAM-GDS-DOCK-SAM54NC-CU) is a vehicle dock designed to support the Samsung Galaxy Tab Active5 Pro, Tab Active4 Pro, and Tab Active Pro wrapped in an IntelliSkin® Next Gen protective sleeve. Using a USB Type-C power connector, the GDS® Tough-Dock™ supports high speed charging capabilities required by the Samsung devices. It also features an additional USB Type-C connector to support a single peripheral device. The USB Type-C connection work seamlessly with RAM® RSM or 3rd party microphones to enable push-to-talk (PTT) over-cellular capabilities. The GDS® Tough-Dock™ is designed with housing that accommodates the RAM® NFC Extender, is compatible with RAM® ball and socket systems, and requires a 4-hole AMPS pattern ball base. The GDS® Tough-Dock™ is backed by a 3-year warranty. Always Protected. Always Connected.®
hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 20V @ 3A
power output

60W
input connector

USB Type-C (Power In)
input cable length

215mm
output connector

USB Type-C (Peripheral)
output cable length

215mm
peripheral output

500mA
Warranty

3 year warranty
Weight

0.603 kg
Additional information
IntelliSkin® not included. This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
