RAM® USB-C Powered Dock + USB-A & RJ45 Data for Tab Active5 Pro & 4 Pro
Part#:RAM-HOL-SAM52CP-RJ45AU UPC:793442030291
3 239 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Skin™ for Samsung Tab Active5 Pro & 4 Pro
Recommended add-on
RAM® Skin™ for Samsung Tab Active5 Pro & 4 Pro
579 kr
Details
RAM® Screen Protector for Samsung Tab Active5 Pro & 4 Pro
Recommended add-on
RAM® Screen Protector for Samsung Tab Active5 Pro & 4 Pro
379 kr
Details
  • Powered dock provides charging and data transfer capabilities for Samsung GalaxyTab Active5 Pro, Tab Active4 Pro, and Tab Active Pro through integrated pogo pin connector for light-duty use and landscape mode only
  • Powered via USB-C connector connect network via RJ45 port and connect a single input device via USB-A port
  • Easily insert and remove device with one hand
  • Compatible with C and D size RAM® 4-hole AMPS pattern bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Spacer Plate Accessory for Flush Mounting
RAM® Spacer Plate Accessory for Flush M...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern
RAM® Tough-Mag™ 88MM Diameter Magnetic ...

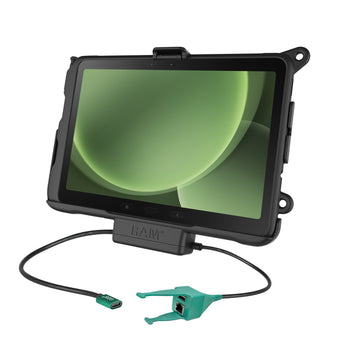

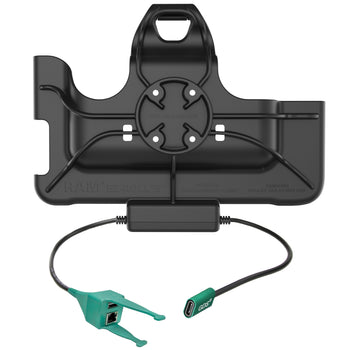

The RAM® USB-C Powered Dock + USB-A & RJ45 Data for Tab Active5 Pro & 4 Pro (RAM-HOL-SAM52CP-RJ45AU) is a form-fit cradle with integrated pogo pins that perfectly align with the Samsung Tab Active Pro series wrapped in the factory-supplied Samsung protective skin. Power is delivered via the integrated USB Type-C connector, while data transfer and peripheral connectivity are supported through the dual peripheral with one USB Type-A port and one RJ45 Ethernet port—ideal for secure wired connections to push software updates or sync data during downtime. The exposed design ensures full access to the device’s speakers, mics, and headphone jack, maintaining full functionality while docked. This dock is intended for light-duty use and supports landscape tablet mounting only. Designed with a rear cavity, this powered dock accommodates ergonomic accessories like the GDS® Hand-Stand™ or GDS® shoulder strap without the need for removal. Pair with any RAM® ball adapter featuring the AMPS hole pattern, plus your preferred arm and mounting base, to complete a durable and versatile mobile workstation solution.

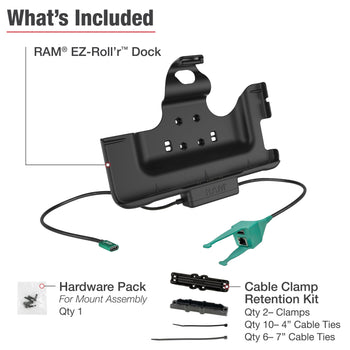

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Optional Cable Clamp Housing
(2) Large Cable Ties
(5) Small Cable Ties
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

215mm
output connector

(1) USB-A Female
(1) RJ45
output cable length

215mm
peripheral output

900mA
transfer speed

480Mbps
Warranty

3 year warranty
Additional information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This holder is intended only for light-duty applications in landscape mode. For heavy duty applications and/or operating in portrait mode, see locking options here.

This product will not support the "No Battery Mode" function of the Tab Active5 Pro & 4 Pro. To support "No Battery Mode", see RAM® Tough-Case™ options here.
