RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & 3
Part#:RAM-HOL-SAM58CPKLN-1AU UPC:793442022432
3 139 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Skin™ for Samsung Tab Active5
Recommended add-on
RAM® Skin™ for Samsung Tab Active5
439 kr
Details
RAM® Screen Protector for Samsung Tab Active5 & 3
Recommended add-on
RAM® Screen Protector for Samsung Tab Active5 & 3
339 kr
Details
Related RAM® Products
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Spacer Plate Accessory for Flush Mounting
RAM® Spacer Plate Accessory for Flush M...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern
RAM® Tough-Mag™ 88MM Diameter Magnetic ...
RAM® Bond-A-Base™ Black Adhesive Base
RAM® Bond-A-Base™ Black Adhesive Base
RAM® Low-Profile Cage Guard Mount with Backing Plate
RAM® Low-Profile Cage Guard Mount with ...

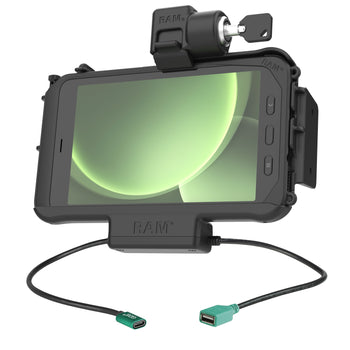

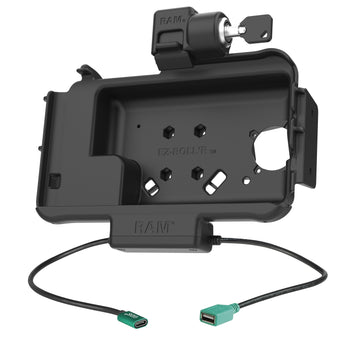

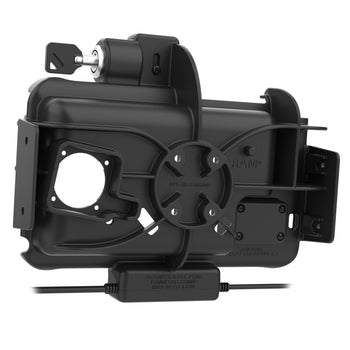

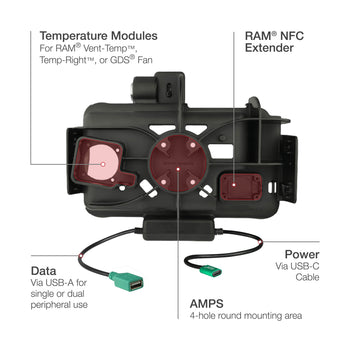

The RAM® Locking Modular Power + Single USB Dock for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM58CPKLN-1AU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's USB port to support one additional peripheral, making this the ideal, compact mounting solution for your mobile workstation. This key-locking modular dock is compatible with the RAM® Skin™ or factory device skin along with most RAM® accessories including: Temperature Control Accessories, RAM® NFC Extender, and side bracket accessory attachments. Modular docks are not compatible with the GDS® Hand-Stand™ but are compatible with the GDS® Roto-Mag™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern.

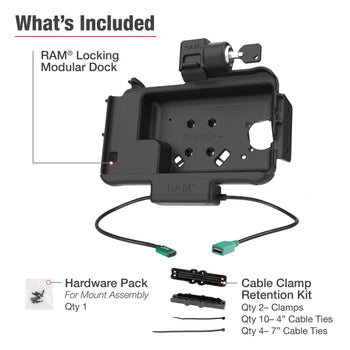

hardware included

(2) Keys
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(2) Optional Cable Clamp Housings
(4) Large Cable Ties
(10) Small Cable Ties
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

250mm
output connector

USB 1.1 Type A
output cable length

250mm
peripheral output

500mA
transfer speed

12Mbps
Warranty

3 year warranty
Weight

0.612 kg
Additional information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.

This dock is not compatible with the GDS® Hand-Stand™.
