RAM® USB-C Powered Dock + USB-C & USB-A Data for Samsung Tab Active5 & 3
Part#:RAM-HOL-SAM60CP-CAU UPC:793442018732
2 269 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

RAM® Skin™ for Samsung Tab Active5
Recommended add-on
RAM® Skin™ for Samsung Tab Active5
439 kr
Details
RAM® Screen Protector for Samsung Tab Active5 & 3
Recommended add-on
RAM® Screen Protector for Samsung Tab Active5 & 3
339 kr
Details

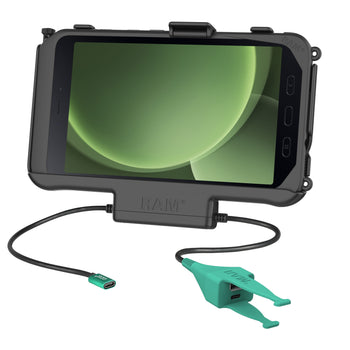

  • RAM® EZ-Roll'r™ form-fit powered dock designed specifically for the Samsung Galaxy Tab Active5 & Tab Active3 provides charging through an integrated pogo pin connection and USB-C cable
  • Compatible with the Samsung OEM skin as well as the RAM® Skin™ built-in cavity in the back allows for GDS® Hand-Stand™ compatibility
  • Powered via USB-C connector (Non-Power Delivery charger required) connect up to 2 input devices via dual USB-A and USB-C connector
  • Access to speakers, mics, and headphone jack remain while device is docked allows access to the GDS® shoulder strap loops on RAM® Skin™
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Rotating Ball Adapter for Phone and Handheld Holders - B Size
RAM® Rotating Ball Adapter for Phone an...
RAM® Spacer Plate Accessory for Flush Mounting
RAM® Spacer Plate Accessory for Flush M...
RAM® Roto-View™ Adapter Plate
RAM® Roto-View™ Adapter Plate
RAM® Tough-Mag™ 88MM Diameter Magnetic Adapter with 2-Hole AMPS Pattern
RAM® Tough-Mag™ 88MM Diameter Magnetic ...

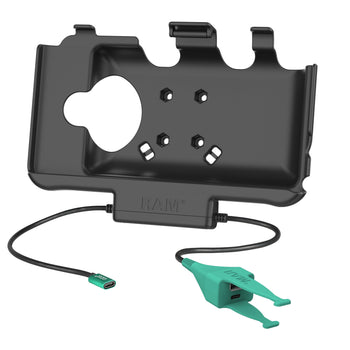

The RAM® USB-C Powered Dock + USB-C & USB-A Data for Samsung Tab Active5 & Tab Active3 (RAM-HOL-SAM60CP-CAU) was thoughtfully designed to meet the demands of commercial truck drivers, field service technicians, pupil transporters, logistics managers, forklift operators, and more. Power and data sync capabilities are provided to the device through GDS® pogo pins while taking advantage of this cradle's dual USB Type-C and USB Type-A pigtail to support up to two additional peripheral devices, making this the ideal, compact mounting solution for your mobile workstation. This modular dock is compatible with the RAM® Skin™, factory device skin, and GDS® Hand-Stand™. Access to the stylus remains while the device is docked. Included is a set of four nuts and bolts to connect the dock to any RAM® components containing the universal AMPS hole pattern along with cable clamps and zip ties for cable retention.

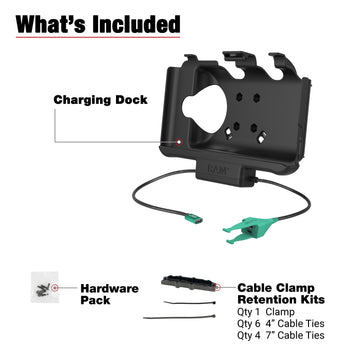

hardware included

(4) #8-32 x 5/8" Machine Screws
(4) #8-32 Nyloc Nuts
(1) Cable Clamp
(4) Large Cable Ties
(6) Small Cable Ties
product dimensions

Width: 9.24"
Height: 6.34"
Depth: 2.57"
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
input voltage

5.3-5.4VDC
output voltage

5VDC
power output

500mA
input connector

USB Type-C Female
input cable length

215mm
output connector

(1) USB-C Female
(1) USB-A Female
output cable length

215mm
peripheral output

900mA (per port)
transfer speed

480Mbps
Warranty

3 year warranty
Weight

0.349 kg
Additional information
Important: This dock is not compatible with any Power Delivery (PD) Chargers. While the dock contains a USB-C connector, the pogo pads on the side of the tablet will not support Power Delivery. Therefore, a non-Power Delivery charger is required to function properly.

This product will not support the "No Battery Mode" function.
