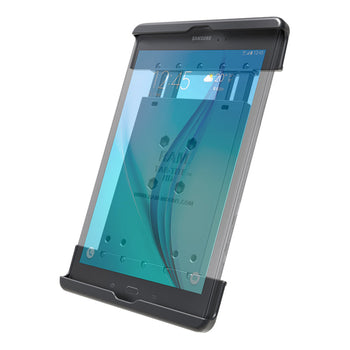

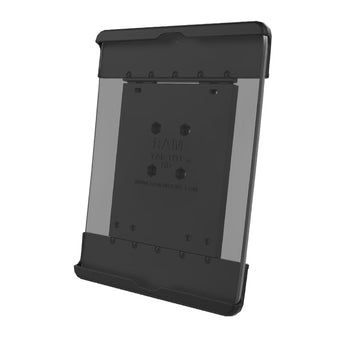

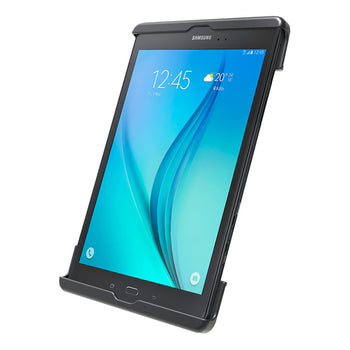

RAM® Tab-Tite™ Spring Loaded Holder for 9.7" Tablets
Part#:RAM-HOL-TAB28U UPC:793442949173 Patented
689 kr
  • Spring-loaded holder secures most 9.7" tablets interchangeable end cups allow you to modify the holder when upgrading devices

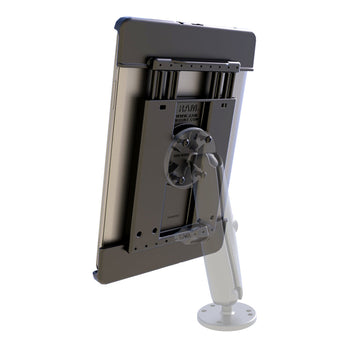

  • Compatible with B and C size RAM® round ball bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a lifetime warranty
The RAM® Tab-Tite™ spring loaded, quick release cradle offers a secure fit with easy access to the mounted tablet. The interchangeable cup ends are designed specifically for the Samsung Galaxy Tab A 9.7, with S Pen and Galaxy Tab S2 9.7. The spring loaded design makes it easy to insert and remove your tablet, along with keeping it secure in mobile applications. The custom end cups are designed to optimize the functionality of your tablet, enabling access to all ports and tablet functions. Included is a set of four nuts and bolts to connect the cradle to any RAM components or mounts that contain the universal AMPs hole pattern. For off-road environments and extreme use, we recommended the use of a tether to assist in retaining your device. The Tab-Tite™ cradle is compatible with any tablet that will fit the dimensions listed below. It is important to verify the dimensions of your tablet when determining the overall size.
hardware included

Assembly Hardware
(4) #8-32 x 5/8" Machine Screws
(4) #8-32 x 1/2" Machine Screws
(4) #8-32 Nylock Nuts

holder dimensions

Height Range: 9" - 11.75"
Width Range: 5.5" - 6.65"
Depth Range: .315" max

hole pattern

4-Hole AMPS: 1.181" x 1.496"

materials

High strength composite

packaging type

Poly Bag

Weight

0.249 kg

Består av

iPad 9.7 (2017)

ZenPad 3S 10

ZenPad Z10

MediaPad T3 10

G Pad II 10.1

G Pad X 10.1

G Pad X II 10.1

Galaxy Tab A 9.7

Galaxy Tab A 10.5

Galaxy Tab A8 10.5

Galaxy Tab S2 9.7

Galaxy Tab S3 9.7

Galaxy Tab S4 10.5

Galaxy Tab S6

Galaxy Tab S7

Galaxy Tab S8

Galaxy Tab S9

Galaxy Tab S9 FE
