UNPKD RAM MARINE ELECTRONICS MOUNT 6 1/4
Part#:RAM-B-111U UPC:793442001987
Ball Icon B SIZE
Arm Icon MED ARM
829 kr
  • Complete flat surface, drill-down mounting solution with an overall height of 5"

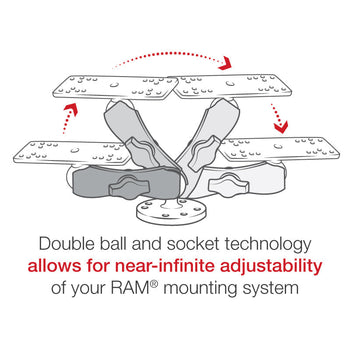

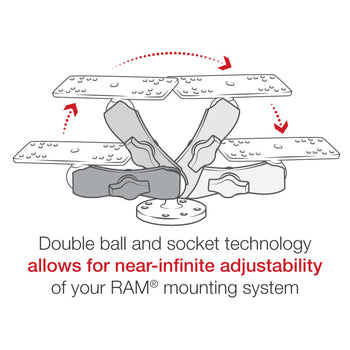

  • RAM® Mounts ball and socket technology allows for near-infinite adjustability
  • Made of Powder-coated, marine-grade aluminum for durability and reliability in the most demanding marine environments
  • Backed by a lifetime warranty

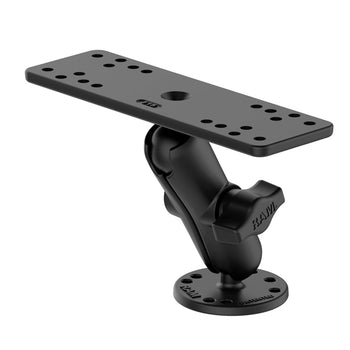

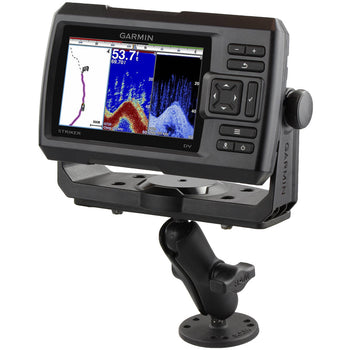

The RAM-B-111U consists of a medium double socket arm, 2.5" diameter round base, and 6.25" x 2" rectangle base. The round base includes a 1" B size rubber ball and contains pre-drilled holes, including the universal AMPS hole pattern. The rectangle base also includes a 1" B size rubber ball and contains a variety of pre-drilled holes that are compatible with several marine electronic devices, including fishfinders and chartplotters.

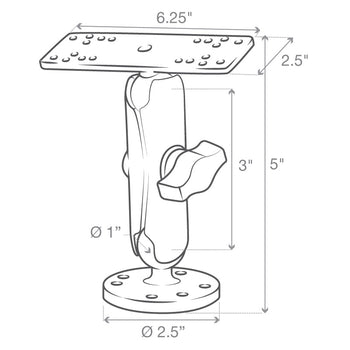

product dimensions

Overall Height: 5"

socket to socket length

3"

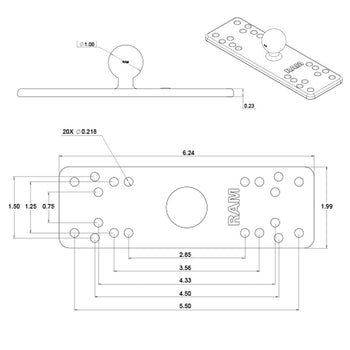

hole pattern

4-Hole AMPS: 1.181" x 1.496"
3-Hole 120-Degree: 1.812" Diameter
See Drawing

plate size

Top Plate: 6.25" x 2.5"
Bottom Plate: 2.5" Diameter

ball size

B Size (1")

weight capacity

Standard Use: 2 lbs
Heavy-Duty Use: 1 lb

materials

Marine-grade aluminum

packaging type

Poly Bag

Weight

0.322 kg

Additional Information

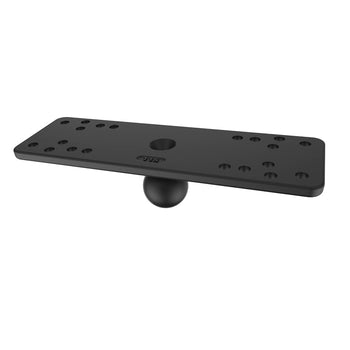

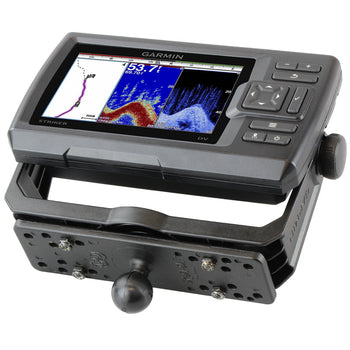

This plate is a universal mounting bracket with a selection of mounting hole locations. In certain applications additional holes may need to be drilled for proper fit with your electronic device.

GPSMAP 162

GPSMAP 168

GPSMAP 175

GPSMAP 180

GPSMAP 180C

GPSMAP 182

GPSMAP 185

GPSMAP 188

GPSMAP 232

GPSMAP 238

Striker 5 Series

Striker Plus 5cv

Striker Vivid 5cv
