GDS® Uni-Conn™ Dock + Dual USB-A & USB-C with Release Lever
Part#:RAM-GDS-DOCK-U1CP-CAU UPC:793442022708
Availability Only a few left
2 359 kr
Incl. VAT
In stock — ready to ship
Backed by manufacturer warranty
Exclusive Nordic RAM® distributor
Expert product & mounting support

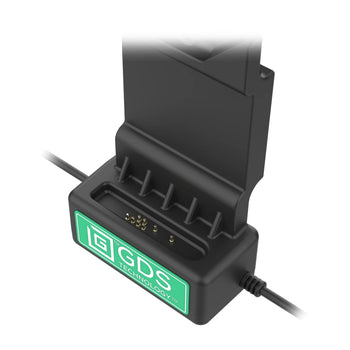

  • Snap-in dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to two additional USB peripherals

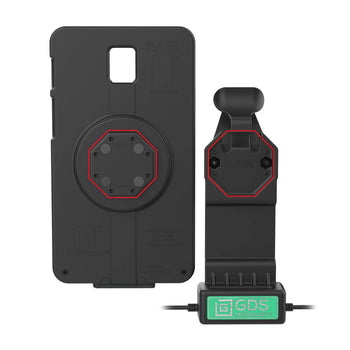

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging and dual USB-A and USB Type-C connects up to peripheral devices
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Vent-Temp™ with Front Dock Connection for Rectangular Vents
RAM® Vent-Temp™ with Front Dock Connect...
RAM® Vent-Temp™ with Front Dock Connection for Round Vents
RAM® Vent-Temp™ with Front Dock Connect...
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with 10-Key Numeric Pad
GDS® Keyboard™ with 10-Key Numeric Pad

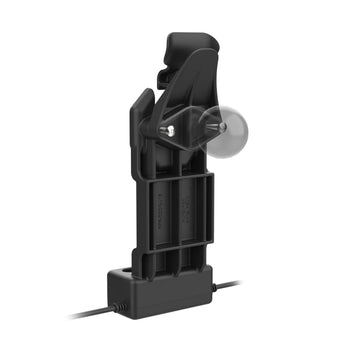

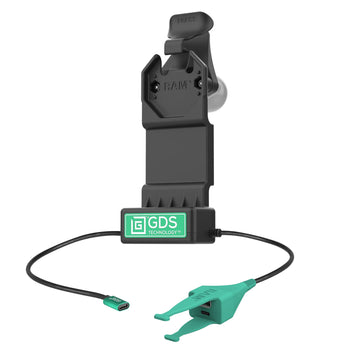

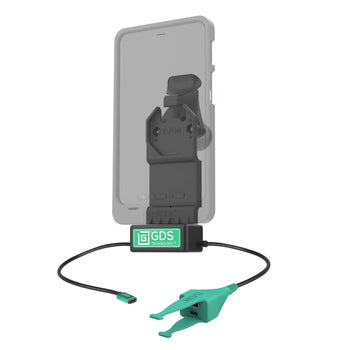

The GDS® Uni-Conn™ Powered Dock with Dual USB-A & USB-C Data (RAM-GDS-DOCK-U1CP-CAU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate up to two peripheral devices into your solution with the dual USB-A and USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

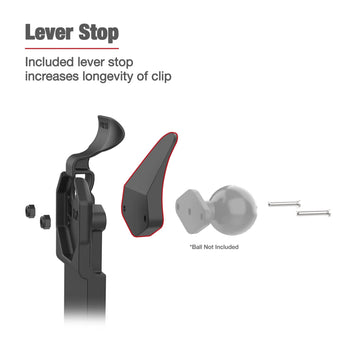

(1) Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nyloc Nuts

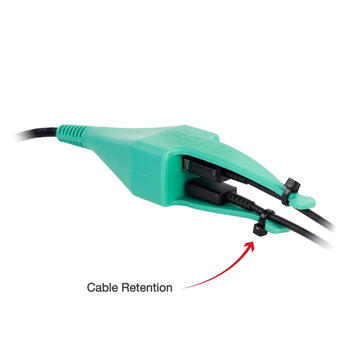

(1) Cable Clamp Kit
product dimensions

Overall Width: 3.16"
Overall Height: 8.44"
Overall Depth: 3.03"
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 20V @ 3A
power output

60W
input connector

USB Type-C (Power In)
input cable length

215mm
output connector

(1) USB Type-C & (1) USB Type-A (Peripheral)
output cable length

215mm
peripheral output

900mA (per port)
Warranty

3 year warranty
Weight

0.269 kg
Additional information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
