GDS® Uni-Conn™ Non-Locking Spring Loaded Power + Single USB-A Dock
Part#:RAM-GDS-DOCK-V12-U1CPDU UPC:793442020315
2 549 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

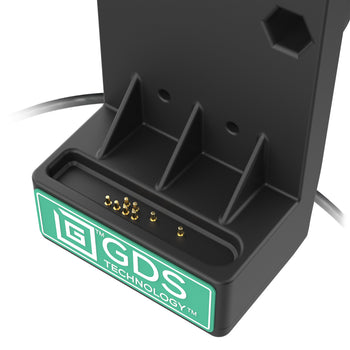

  • Spring-loaded dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector connect a single input device via USB-A connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
Related RAM® Products
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with 10-Key Numeric Pad
GDS® Keyboard™ with 10-Key Numeric Pad

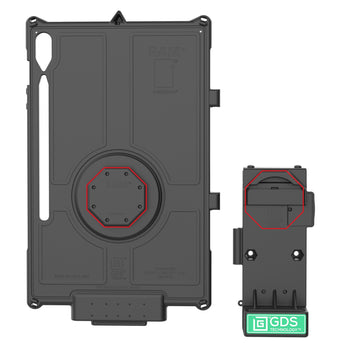

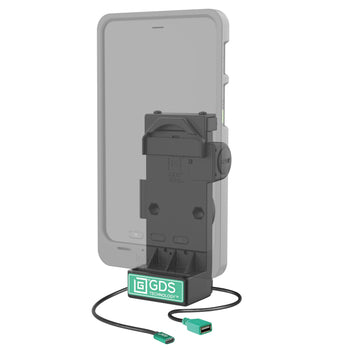

The GDS® Uni-Conn™ Spring Loaded Power + Single USB-A Dock (RAM-GDS-DOCK-V12-U1CPDU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It features an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nyloc Nuts

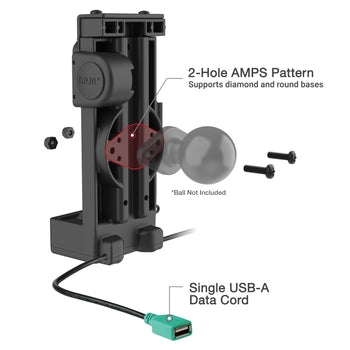

hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

USB Type-C
USB Type A for 1 Peripheral
input cable length

1 Meter
peripheral output

500mA
Warranty

3 year warranty
Weight

0.282 kg
Additional information
GDS® Uni-Conn™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS® Uni-Conn™ Powered Dock for high vibration applications or the GDS® Tough-Dock™ for extreme applications.
