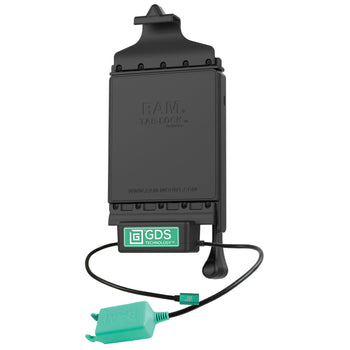

GDS® Vehicle Dock + Dual USB-A for iPad mini (A17 Pro) & mini 6
Part#:RAM-GDS-DOCKL-V10-OMT3CD2U UPC:793442101601 Patented & Pats. Pend.
3 439 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

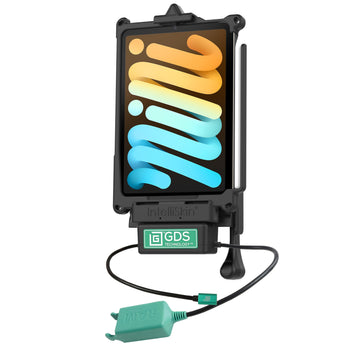

  • Vehicle dock with integrated GDS® Technology™ for Apple iPad mini (A17 Pro) & mini 6 and other shorter tablets offers a universal charging platform for any device wrapped in IntelliSkin® Next Gen

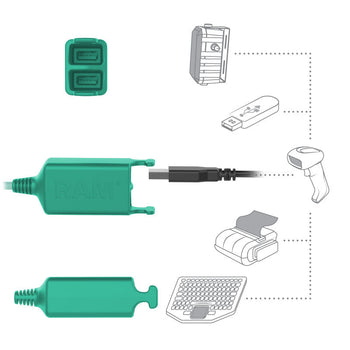

  • Power delivered via USB-C connector connect up to 2 input devices via dual USB-A connector

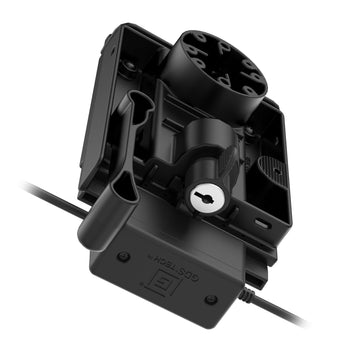

  • Keyed lock for theft deterrence
  • Easy, quick release of your tablet for on-the-go applications
  • Backed by a 3-year warranty
Related RAM® Products
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with Track Pad
GDS® Keyboard™ with 10-Key Numeric Pad
GDS® Keyboard™ with 10-Key Numeric Pad

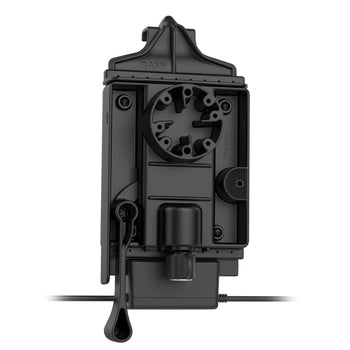

The dual USB Type-C locking vehicle dock for IntelliSkin® Next Generation features GDS® Technology™ for Apple iPad mini (A17 Pro) & mini 6 and other small tablets to enable high speed charging capabilities on the go. This spring-loaded, quick release dock features a keyed lock that offers a secure fit with easy access to your mounted tablet. A bottom dock cup includes 8 pogo pins and a USB Type-C pigtail. Without the need to remove your IntelliSkin® Next Gen sleeve from the device, efficiently mount the tablet in the vehicle dock to keep your tablet charged and locked in place. This dock is designed to meet the demands of field workers in a variety of applications, including transportation, field sales, logistics, manufacturing, and much more. Always Protected. Always Connected.®
hardware included

Assembly Hardware
(2) M4 x 32mm Machine Screws
(2) M4 Nyloc Nuts
(2) #8 x 5/8" Sheet Metal Screws
(1) Cable Clamp
(2) Keys
hole pattern

4-Hole AMPS: 1.181" x 1.496"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 12V @ 3A max
Each Peripheral: 5V @ 900mA max
power output

15W
input connector

USB Type-C
Dual USB Type A for 2 Peripherals
output cable length

.21 Meters
peripheral output

900mA (per port)
Warranty

3 year warranty
Weight

0.739 kg

Related Solutions

No-Drill™ Mounts
RAM® No-Drill™ Mount for '15-26 Ford F-150, ’17-26 F-250 + More RAM-VB-195-SW2
Ball size C
5 229 kr
RAM® No-Drill™ Ball Mount for '19-26 Chevy Silverado, Tahoe & More RAM-VB-203-DB2
Ball size C
5 799 kr
RAM® No-Drill™ Universal Vehicle Floor Mount with Double Ball Mount RAM-VB-196-DB2
Ball size C
Arm length Long
4 959 kr
C Size Diamond Bases
RAM® Pod HD™ 30" Vehicle Mount with Diamond Plate RAM-316-HD-18-238U
Ball size C
Arm length Medium
4 229 kr

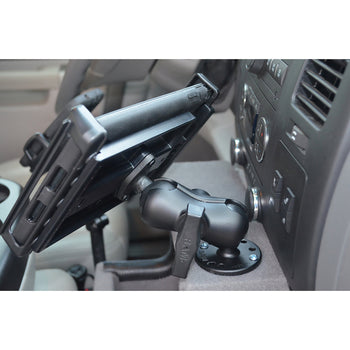

RAM® Double Ball Mount with Diamond Plate Adapter - Long RAM-138U-D
