GDS® Uni-Conn™ Locking Spring Loaded Power + USB-A Dock - Heated Pins
Part#:RAM-GDS-DOCKL-V12-U1CPDHU UPC:793442020346
3 519 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Spring-loaded, locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral

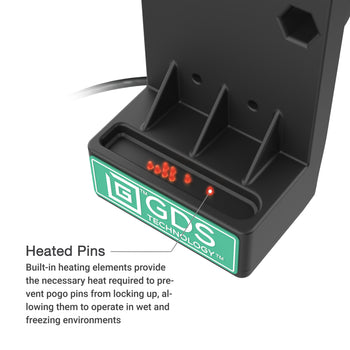

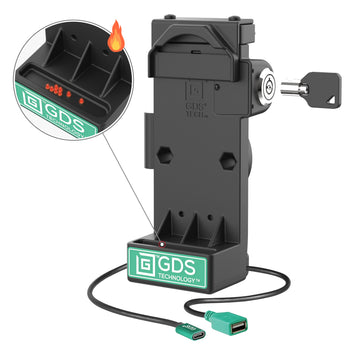

  • Heated pogo pins combat ice and ensure a secure connection in harsh, cold environments

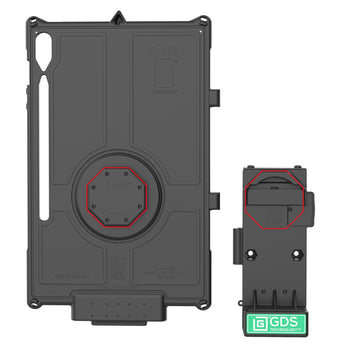

  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector connect a single input device via USB-A connector
  • Backed by a 3-year warranty

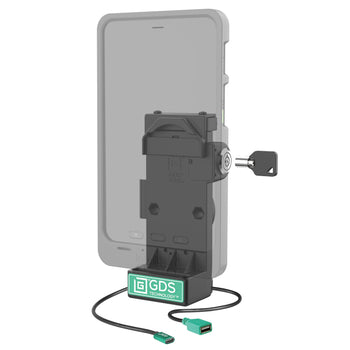

The GDS® Uni-Conn™ Locking Spring Loaded Power + USB-A Dock - Heated Pins (RAM-GDS-DOCKL-V12-U1CPDHU) is a revolutionary universal docking platform. This sliding dock solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. It has an easy docking and undocking process, simply place the GDS® Uni-Conn™ adapter on the back of your device into the octagon-shaped connection point on the top cup, pushing the the device upwards until you can place the bottom of the device on the D-shaped bottom cup connection point. Integrate up to one peripheral device into your solution with the USB-A female connector. Combat harsh, freezing environments with heated pogo pins integrated into the dock to ensure a secure connection and prevent the pins from locking up due to ice. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 Nyloc Nuts

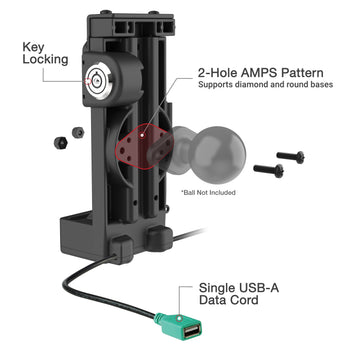

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

input connector

USB Type-C
USB Type A for 1 Peripheral

input cable length

1 Meter

peripheral output

500mA

Warranty

3 year warranty

Weight

0.361 kg

Additional information
GDS® Uni-Conn™ Spring-Loaded docks are not recommended for high vibration or open cockpit applications, such as forklifts or semi-trucks. Consider the GDS® Uni-Conn™ Powered Dock for high vibration applications or the GDS® Tough-Dock™ for extreme applications.
