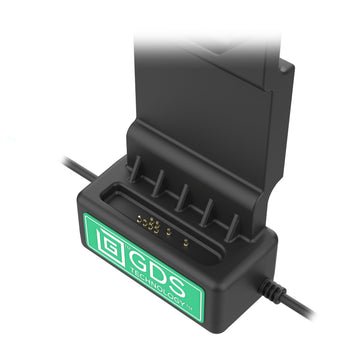

GDS® Uni-Conn™ Left Locking Power + Single USB-C Dock
Part#:RAM-GDS-DOCKLL-U1CP-CU UPC:793442021046
3 119 kr
  • Snap-in locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB peripheral
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • USB Type-C Female connector provides high-speed charging and USB Type-C connects one peripheral device
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
The GDS® Uni-Conn™ Locking Dock + Single USB-C (RAM-GDS-DOCKLL-U1CP-CU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock for additional theft deterrence. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. Integrate one peripheral devices into your solution with the USB-C female connector. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. Current compatibility for this fixed dock height includes the Samsung Tab A7 Lite, Tab A 8.4, Tab S9 FE, Tab S9 FE+, Tab Active5, Tab Active3, and Tab A9+. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) Keys

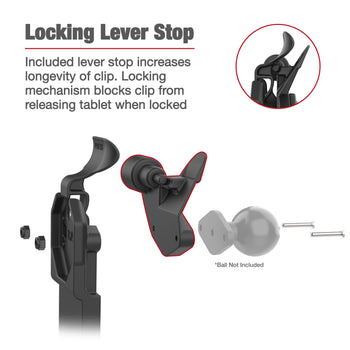

(1) Locking Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit
product dimensions

Overall Width: 4.27"
Overall Height: 8.44"
Overall Depth: 3.03"
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
output voltage

5V - 12V @ 3A
power output

15W
input connector

USB Type-C
USB Type-C for 1 Peripheral
input cable length

215mm
output cable length

215mm
peripheral output

500mAh
Warranty

3 year warranty
Weight

0.318 kg
Additional Information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ Snap-In docks are not recommended for open cockpit applications, such as forklifts. Consider the GDS® Tough-Dock™ for extreme applications.
