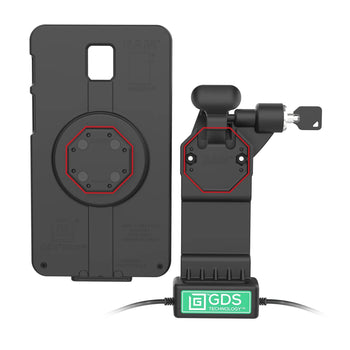

GDS® Uni-Conn™ Right Locking Powered Dock with USB-A & RJ45 Data
Part#:RAM-GDS-DOCKLR-U1CP-RJ45AU UPC:793442022722
4 289 kr

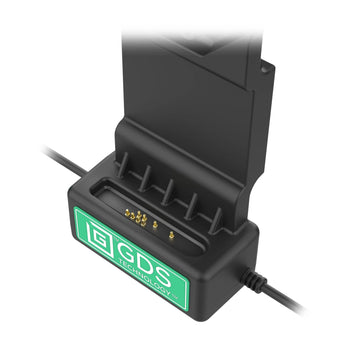

  • Snap-in locking dock featuring GDS® Technology™ uses an integrated pogo pin connector to provide high-speed charging and connection to one additional USB-A peripheral
  • Designed for devices wrapped in an IntelliSkin® protective sleeve with GDS® Uni-Conn™ Adapter installed
  • Power delivered via USB-C connector data and ethernet connects to dual USB-A and RJ45 connector
  • RAM® Mounts Compatible™
  • Backed by a 3-year warranty
The GDS® Uni-Conn™ Right Locking Powered Dock with USB-A & RJ45 Data (RAM-GDS-DOCKLR-U1CP-RJ45AU) is a revolutionary universal docking platform. This clip-in, quick-release solution securely holds your device in place and features a key lock on the right side for additional theft deterrence. For the same dock with a lock on the left side, see RAM-GDS-DOCKLL-U1CP-RJ45AU. When docked, power is delivered via the pogo pin connection, enabled by the USB-C female connector. It also includes a dual-input pigtail that features one RJ45 (ethernet) connector for a direct and secure connection to your network alongside one USB Type-A female connector for connecting peripherals to your tablet. It features an easy docking and undocking process, simply place the IntelliSkin®-wrapped device into the base of the dock and push it to snap into place. When undocking, a simple push of a lever releases the tablet. The docking station requires the GDS® Uni-Conn™ adapter (RAM-GDS-U1U) to be installed on the intended IntelliSkin®-wrapped device. The GDS® Uni-conn™ dock is backed by a 3-year warranty. Warranty is void if lever stop is not installed. Always Protected. Always Connected.® One Dock to Connect Them All™.
hardware included

(2) Keys
(1) Locking Lever Stop
(2) #8-32 x 1" Machine Screws
(2) #8-32 Nylock Nuts
(1) Cable Clamp Kit

product dimensions

Overall Width: 4.27"
Overall Height: 8.44"
Overall Depth: 3.03"

hole pattern

2-Hole AMPS: 1.912"

materials

High strength composite

packaging type

Poly Bag

output voltage

Type-C Tablets: 5V - 12V @ 3A max
mUSB Tablets: 5V @ 1.5A max

power output

15W

input connector

USB Type-C (Power In)

input cable length

215mm

output connector

(1) USB Type-A & (1) RJ45 Female

output cable length

215mm

peripheral output

900mAh

Warranty

3 year warranty

Weight

0.376 kg

Additional Information
The Lever Stop included with this dock is required in order to function properly. Warranty on dock is void if dock is used without Lever Stop. GDS® Uni-Conn™ docks are not recommended for high vibration applications such as forklifts.
