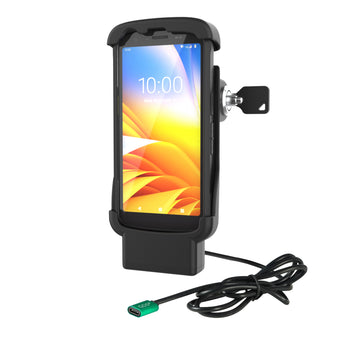

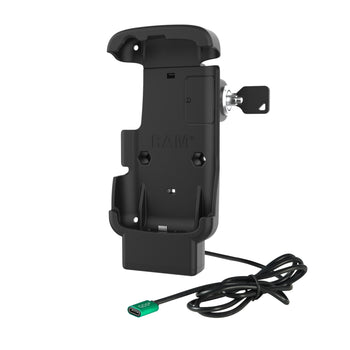

RAM® Locking Form-Fit Powered Dock for Zebra TC22 & TC27 with Boot
Part#:RAM-HOL-ZE24L-CU UPC:793442028830
2 989 kr
Incl. VAT

On request

This item is available on request. Leave your email and/or phone number and we’ll get back to you — it may already be on order or ready to assemble from parts in stock. If we need to source it specially, lead time is typically 6–8 weeks.

Looking for a faster option? Alternatives such as components or a different arm length are often available — contact us and we’ll help you find the right fit.

  • Key-locking, spring-loaded powered dock featuring USB-C device connection designed for the Zebra TC22 & TC27 with protective boot

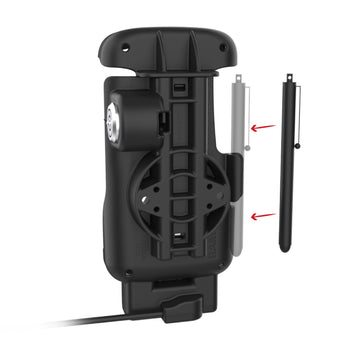

  • Back cavity accommodates OEM ergonomic accessories
  • Compatible with RAM® diamond bases for attaching a double socket arm ball and socket technology allows for near-infinite adjustability
  • Made of high-strength composites for durability and reliability in the most demanding environments
  • Backed by a 3-year warranty
Related RAM® Products
RAM® Double Socket Arm with Diamond Ball Plate
RAM® Double Socket Arm with Diamond Bal...
RAM® Double Socket Arm with Diamond Ball Plate - C Size Short
RAM® Double Socket Arm with Diamond Bal...
RAM® Double Socket Arm with Diamond Ball Plate
RAM® Double Socket Arm with Diamond Bal...

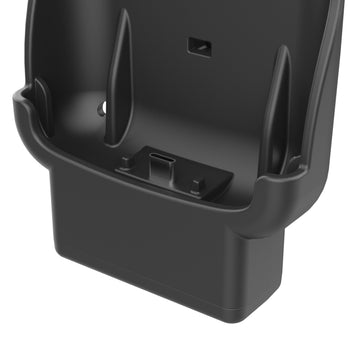

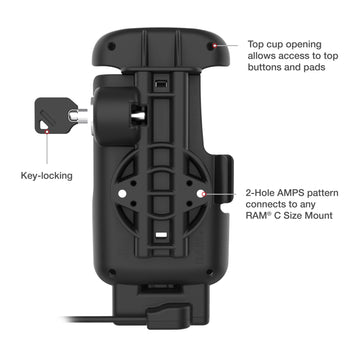

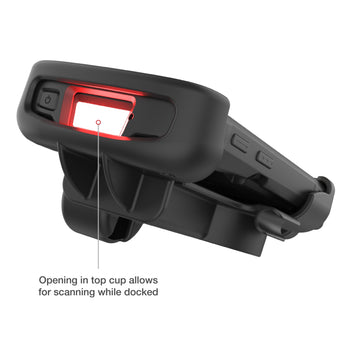

The RAM® Locking Form-Fit USB-C Dock for Zebra TC22 & TC27 with Boot (RAM-HOL-ZE24L-CU) is a rugged dock that will meet and exceed the demands of modern workflows, featuring a USB-C connection tested for more than 250,000 cycles. The spring-loaded design of this dock allows for a quick one-handed insertion or removal of your device while the precise design of the dock body minimizes human error and port damage when docking the device onto the USB-C male connector. The back cavity of the dock accommodates ergonomic accessories secured to the back of the device. An integrated cutout on the top allows for the ability to access buttons, ports, and scanner without removing the device from the dock. The key lock provides peace of mind and theft deterrence for high-traffic environments. Complete the solution by building your mount—this holder is RAM® Compatible™ featuring a 2-hole AMPS pattern for adding a diamond ball adapter.
hardware included

(2) Keys
(2) #8-32 x 5/8" Machine Screws
(2) #8-32 x 3/4" Machine Screws
(2) #8-32 Nylock Nuts
product dimensions

Overall Height: 7.72"
Overall Width: 3.66"
Overall Depth: 2.54"
hole pattern

2-Hole AMPS: 1.912"
materials

High strength composite
packaging type

Poly Bag
input connector

USB Type-C
input cable length

750mm
certifications

RoHS
WEEE
CE
Warranty

3 year warranty
Weight

0.339 kg
